What are the immersive LED display solutions?

9 views admin 2026-07-17

Driven by scenarios such as digital exhibition halls, cultural tourism light and shadow displays, and XR virtual shooting, traditional flat LED screens can no longer meet the demand for high-quality visual experiences. Immersive LED display solutions centered on visual envelopment, virtual-real fusion, human-computer interaction, and ultra-low latency have become the mainstream choice for current smart engineering and digital cultural tourism projects.

The 180°/270° curved screen is the most common entry-level immersive solution. By bending and splicing standard LED modules, it creates a semi-enclosed curved visual effect, effectively breaking the boundary feel of flat screens and suitable for most conventional exhibition spaces.
Core technical highlights: Uses P0.9-P1.8 fine-pitch COB panels, combined with curve calibration and image fusion technologies to eliminate splicing gaps and image breaks; supports customizable curvature, with a refresh rate ≥3840Hz for pure, flicker-free images.
Applicable scenarios: Corporate exhibition halls, urban planning museums, science popularization exhibition halls, small-to-medium immersive launch events.

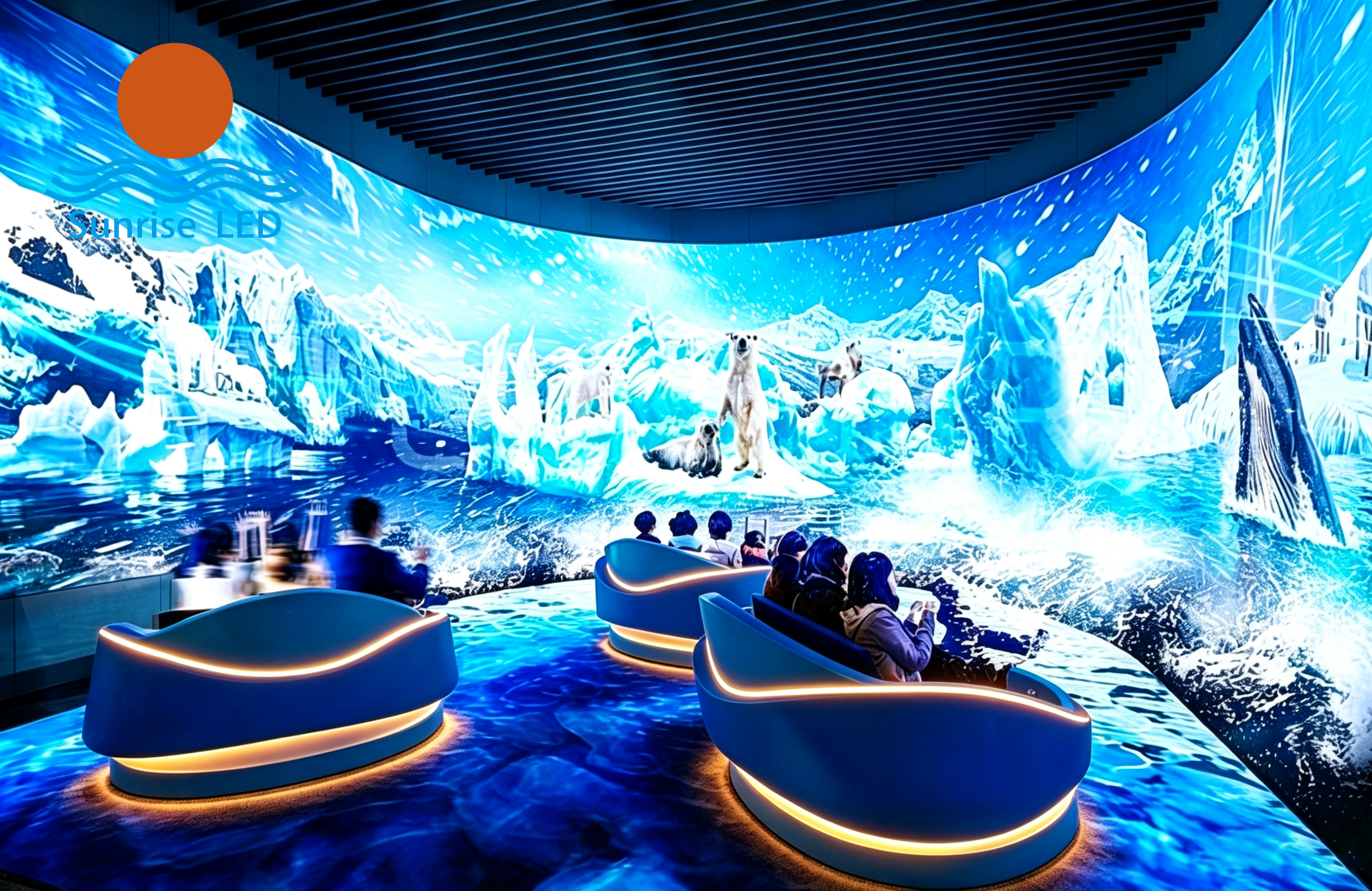

The 360° panoramic surround screen uses flexible LED modules to seamlessly splice into circular or oval enclosed spaces, placing viewers at the center to achieve all-angle, blind-spot-free visual coverage and completely eliminate visual boundaries.

Core technical highlights: Relies on flexible modules to achieve large-curvature seamless bending, combined with full-area point-by-point color calibration and panoramic adaptation algorithms to address image stretching and color differences; multi-channel synchronized playback enables millisecond-level synchronization across the entire circle, without stuttering or tearing.

Applicable scenarios: Cultural tourism experience centers, social media photo spots, panoramic digital sand tables, immersive viewing halls.

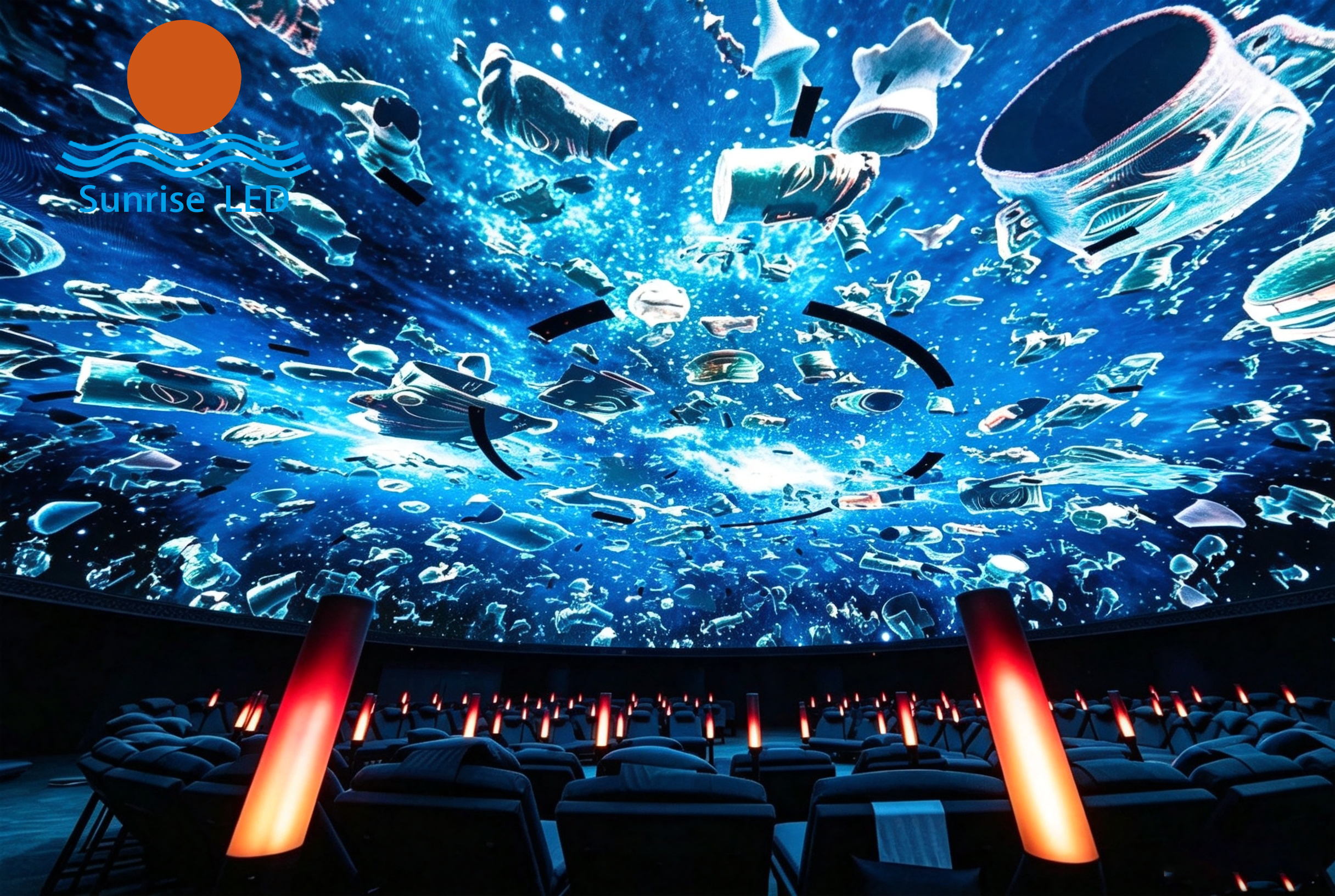

The CAVE immersive space is a benchmark solution for high-end immersive projects. The mainstream configuration consists of three to five LED surfaces enclosing the space (front, side walls, ceiling, and floor), forming a closed stereoscopic visual space. Combined with real-time rendering technology, it delivers the ultimate virtual-real immersive experience.

Core technical highlights: Uses highly uniform fine-pitch COB panels, paired with spatial positioning and ultra-low latency rendering systems, with overall latency controlled within 10ms; supports multi-screen image fusion and synchronization, and can integrate motion capture devices to enable real-time human-computer interaction.

Applicable scenarios: High-end cultural and museum exhibition halls, industrial virtual training, university research laboratories.

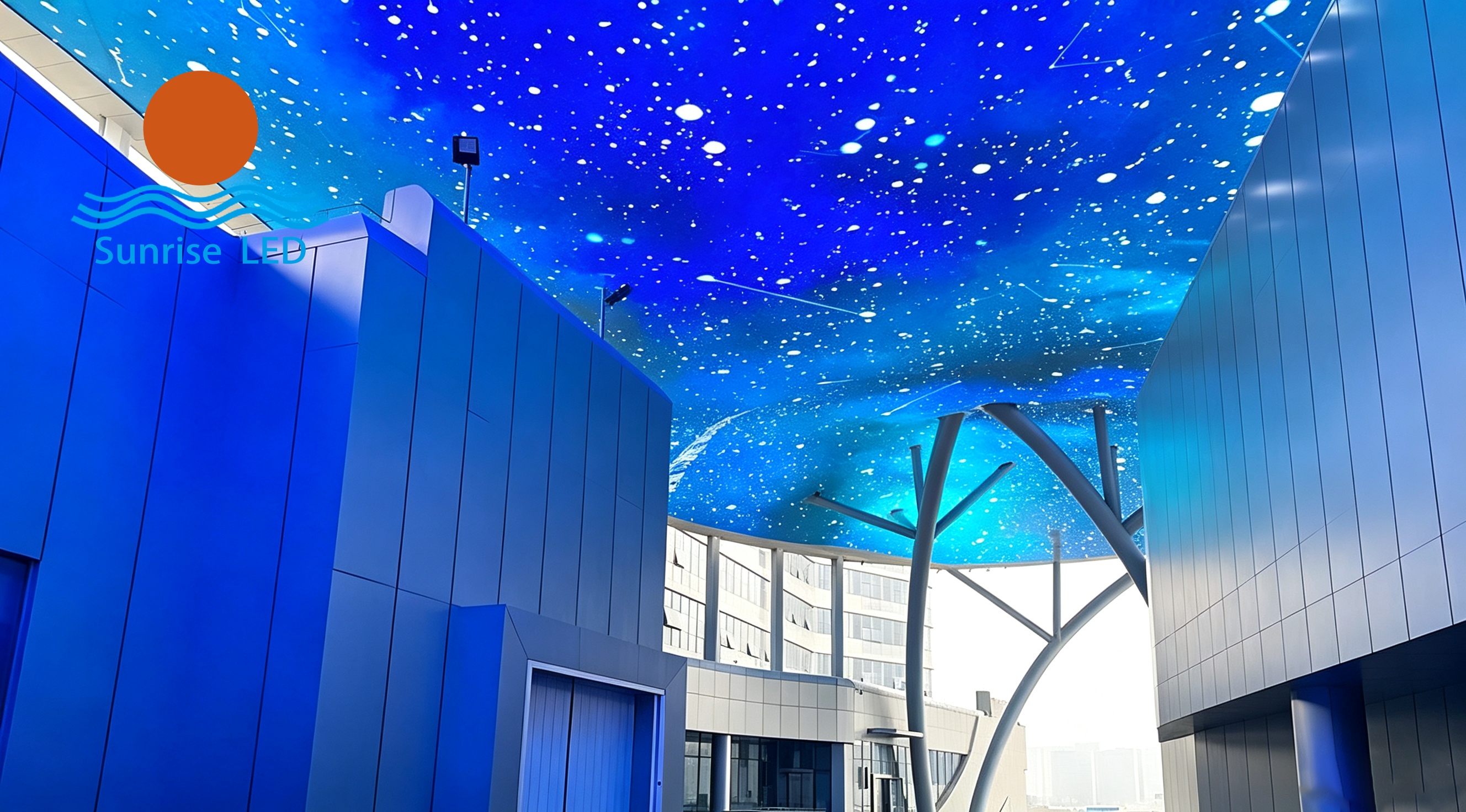

The LED canopy screen focuses on atmospheric immersion for overhead spaces. By installing lightweight LED screens on domes and passage ceilings, it simulates dynamic scenes such as starry skies and cloud seas. Combined with wall screens, it can achieve stereoscopic visual effects with top-bottom linkage. Core technical highlights: Uses lightweight flexible modules that adapt to various ceiling structures, with optimized load-bearing design; equipped with zoned dimming and image linkage algorithms to achieve synchronized interaction between wall and ceiling visuals.

Applicable scenarios: Shopping mall atriums, cultural tourism corridors, theater venues, social media light and shadow passages.

5. Interactive LED Floor Tile Screen Immersive Solution (Motion-Sensing Interactive Immersion)

The interactive LED floor tile screen focuses on human-computer interaction immersion. Relying on dedicated floor LED screens and intelligent sensing technology, it achieves real-time linkage between people and visuals, upgrading static visual displays into dynamic interactive experiences.

Core technical highlights: Uses anti-slip, pressure-resistant, and waterproof dedicated floor tile modules suitable for high-frequency stepping scenarios; integrates radar and AI visual recognition modules to accurately capture human movements, achieving interactive effects such as particle following and scene switching.

Applicable scenarios: Exhibition hall interactive zones, cultural tourism light and shadow parks, shopping mall photo spots, children's immersive experience spaces.

The XR virtual production LED solution is an immersive solution dedicated to film, television, and live streaming. It replaces traditional green screens with high-definition curved LED screens to achieve real-time virtual-real compositing, solving industry pain points such as green screen keying artifacts and lighting mismatches.

Core technical highlights: Uses ultra-high refresh rate screens ≥3840Hz to eliminate moiré patterns and flicker during filming; paired with camera tracking and XR real-time rendering systems, ensuring accurate perspective and synchronized lighting, with overall system latency <10ms, meeting film-grade shooting standards.

Applicable scenarios: Virtual production for film and television, XR live streaming, TV station studios, short video virtual shooting bases.

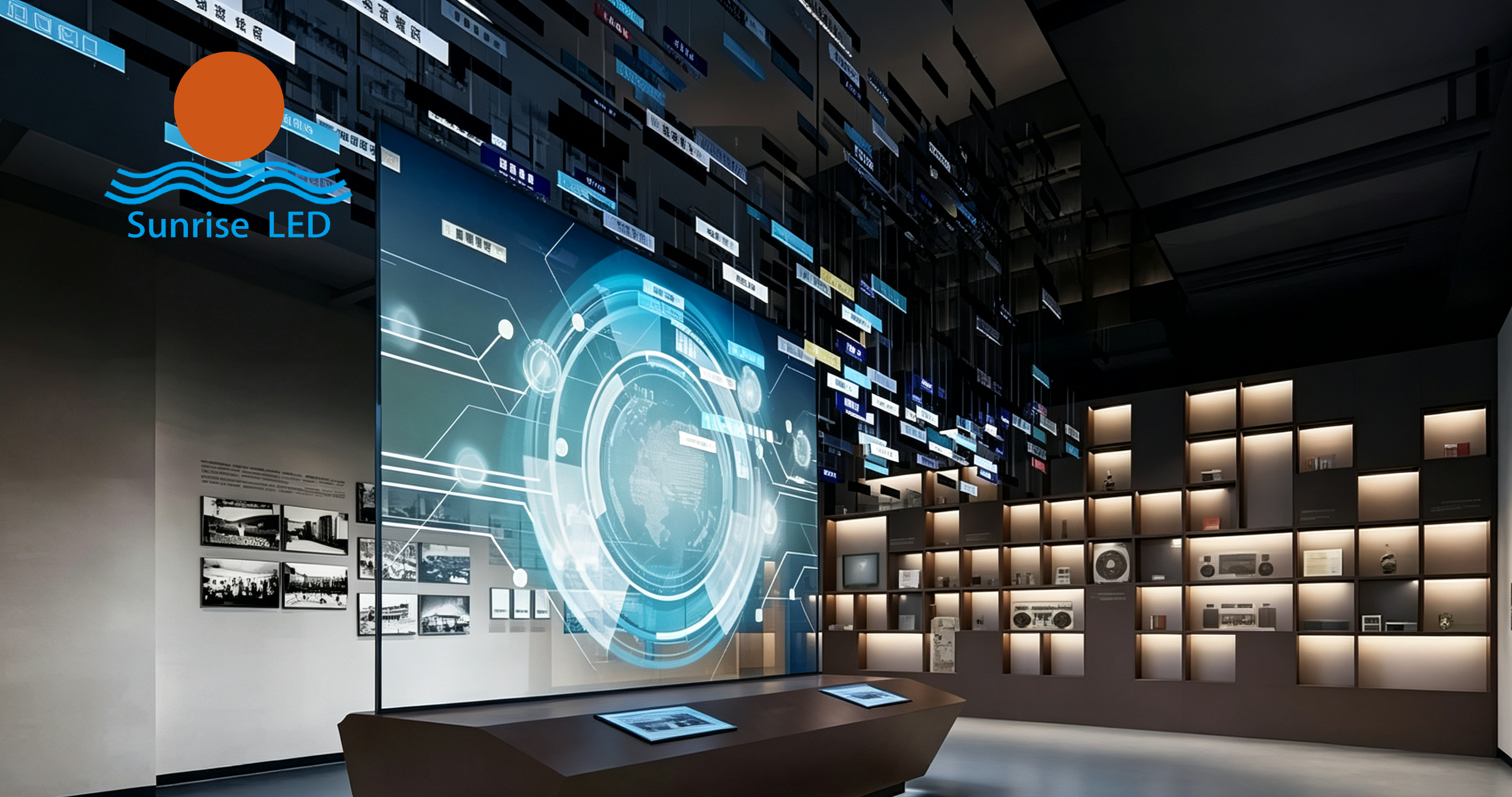

The transparent LED immersive solution focuses on virtual-real symbiosis. By relying on high-transparency screens that retain the original real scene, it overlays dynamic digital images to achieve a lightweight immersive experience blending real scenes with digital content.

Core technical highlights: Screen transparency can reach 70%-90%, without obstructing buildings or real scene structures; uses high-transparency encapsulation technology to balance brightness and transparency, paired with image adaptation techniques to achieve seamless virtual-real fusion. Applicable scenarios: Glass curtain wall exhibition halls, immersive display of cultural relics, commercial display windows, lighting upgrades for high-end office buildings.
Industry Development Trends

Current immersive LED display is evolving towards micro-pitch ultra-high definition, AI-powered intelligent interaction, ultra-low latency, lightweight energy efficiency, and deep virtual-real fusion. COB encapsulation is becoming fully mainstream, significantly improving screen flatness and durability; combined with AI recognition, real-time rendering, and motion capture technologies, immersive scenes are progressively upgrading from pure visual appreciation to intelligent spaces that are interactive, training-capable, and commercially viable.
