Optimal Viewing Distance for LED Displays with Different Pixel Pitches

20 views admin 2026-07-08

The viewing distance of an LED display can be accurately estimated based on its pixel pitch. The industry’s general standard formula is as follows:
The minimum viewing distance equals 1 times the pixel pitch; viewers standing closer than this distance will clearly see individual lamp beads, resulting in grainy, coarse images.
The optimal viewing distance ranges from 1 to 3 times the pixel pitch, delivering delicate images and comfortable visual experience within this range.
The maximum effective viewing distance is 30 times the overall height of the screen. Beyond this distance, small text will appear blurry, and only general visuals can be distinguished.
This formula serves as a general guideline. The actual optimal viewing distance is affected by factors including screen brightness, grayscale level, viewing angle, screen uniformity, ambient light and viewing orientation, so minor adjustments can be made according to on-site scenarios and visual experience.

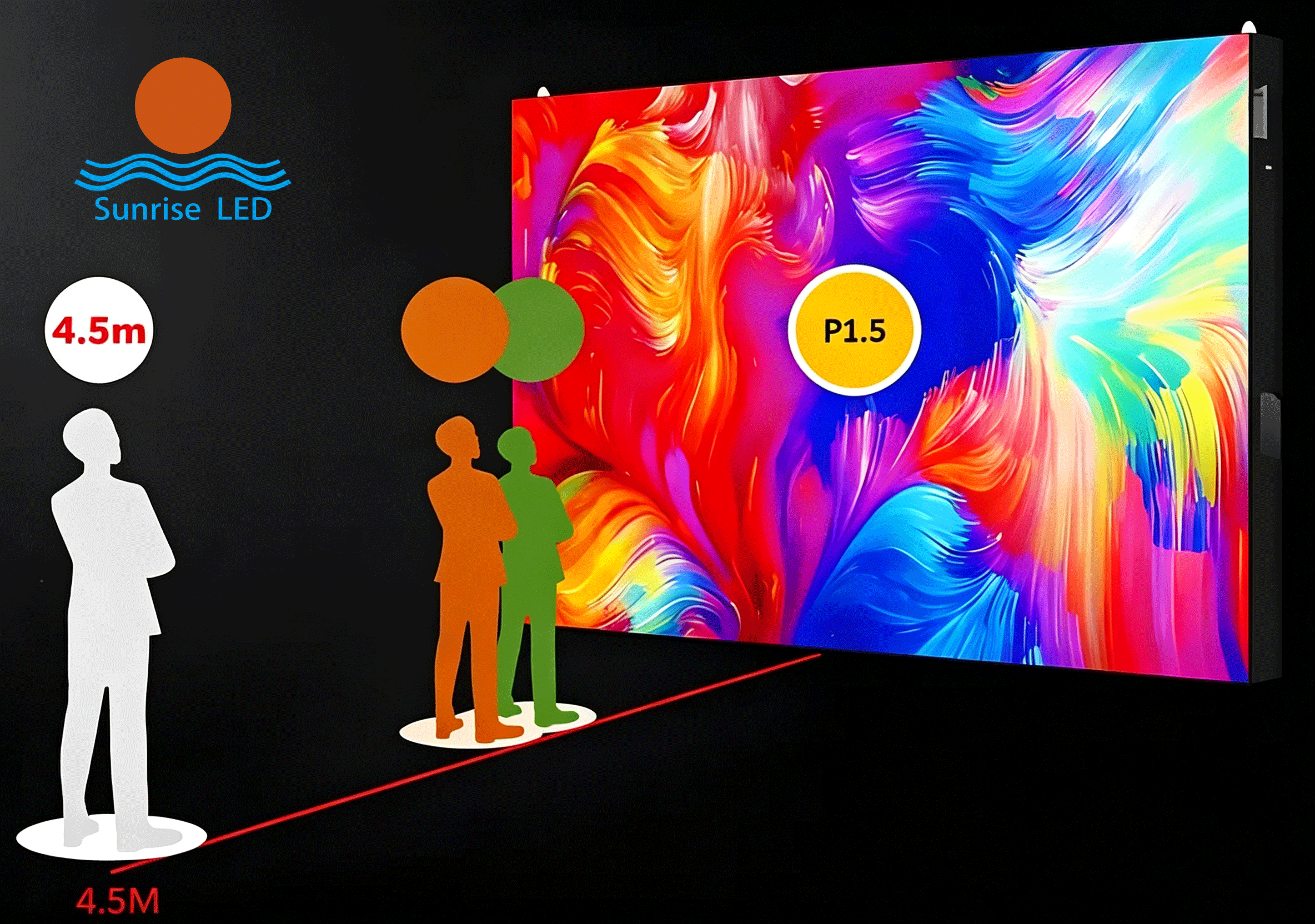

Standard Viewing Distance Reference Table for LED Displays Based on the above calculation formula, the standard viewing distances for LED displays with common pixel pitches are listed below: - P1.5 LED Display: Optimal viewing distance 1.5 ~ 4.5 meters
- P2.0 LED Display: Optimal viewing distance 2.0 ~ 6.0 meters
- P2.5 LED Display: Optimal viewing distance 2.5 ~ 7.5 meters
- P3.0 LED Display: Optimal viewing distance 3.0 ~ 9.0 meters
- P4.0 LED Display: Optimal viewing distance 4.0 ~ 12.0 meters
- P4.75 LED Display: Optimal viewing distance 4.8 ~ 14.3 meters
- P5 LED Display: Optimal viewing distance 5.0 ~ 15.0 meters
- P6 LED Display: Optimal viewing distance 6.0 ~ 18.0 meters
- P8 LED Display: Optimal viewing distance 8.0 ~ 24.0 meters
- P10 LED Display: Optimal viewing distance 10.0 ~ 30.0 meters
Supplementary Notes for Scenario Selection
For scenarios focused on text display, select a distance close to the minimum viewing distance to guarantee legibility of small characters.
For scenarios dominated by dynamic videos and promotional visuals, a distance near the upper limit of the optimal viewing range is recommended to balance display effect and cost performance.
In addition, the front-row viewing position on site must be farther than the screen’s minimum viewing distance to prevent graininess that ruins the viewing experience.
