English Translation LED Screen Fixation & Installation Technology for Different Wall Types (Glass / Steel Structure / Brick-Concrete Wall)

5 views admin 2026-06-04

The installation quality of LED display screens directly determines operational safety and display performance, and screen fixing solutions vary significantly according to wall construction types. Glass curtain walls, steel structural walls and brick-concrete walls stand for three typical base substrates: lightweight transparent components, metal frameworks and dense masonry, each with unique stress-bearing principles and dedicated fixing techniques.
1. Glass Curtain Wall
Fix via Existing Frame Structure
Take the curtain wall’s aluminum alloy frame or steel keel as the load-bearing base; mount the screen onto frame beams and uprights with customized hanging fittings. Direct fixation onto glass panels is forbidden.
Hanging Mount for Frameless Curtain Wall
Install independent load-bearing steel beams on top of the curtain wall, which are anchored to the main building structure. The LED screen is suspended via hanging rods, with limiting supports fitted at the bottom to prevent swaying.
Through-Type External Mounting
Install penetrating connectors along glass panel joints and fasten them to curtain wall mullions; attach the screen to these connectors with complete waterproofing and thermal bridge isolation treatment implemented.

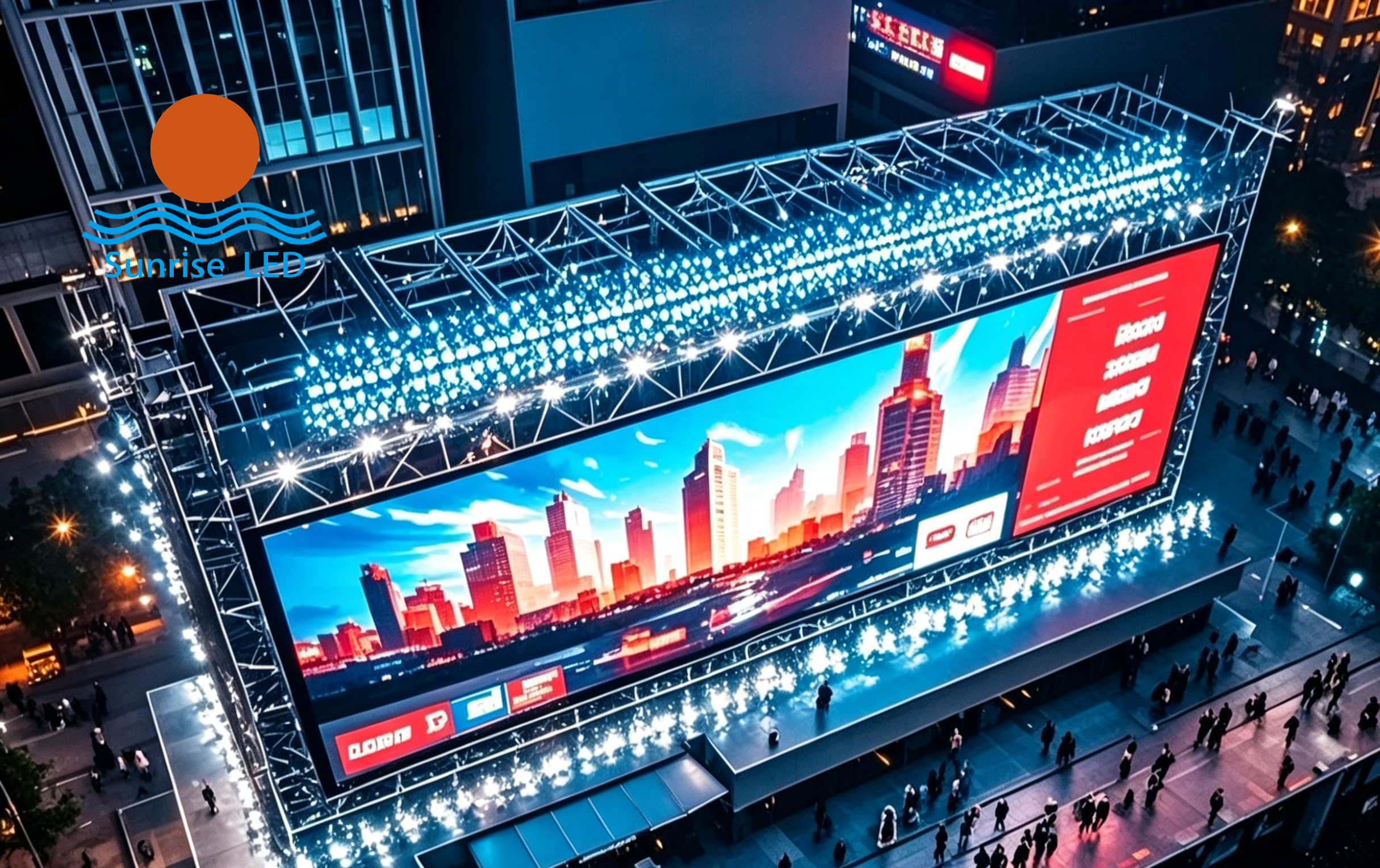

2. Steel Structure Wall Fabricate Independent Rear Support Frame
Weld a steel rear frame formed by primary and secondary grid keels first, then secure the frame to existing steel beams and columns via welding or bolt fastening. Standardized Welding Specifications
Welds shall be full and continuous; adopt symmetrical intermittent skip welding to mitigate structural deformation. Remove welding slag upon completion and apply multi-layer anti-corrosion coating for rust prevention.
Uniform Load Distribution
Arrange connecting joints evenly to avoid localized load concentration. Design the rear frame to bypass pre-set structural openings and pipelines; install transfer beams for load adjustment when necessary.
Application Scenarios
Ideal for large outdoor LED screens and rooftop displays exposed to strong wind loads.
3. Brick-Concrete Wall
Reliable Post-installed Anchorage Preferred
Chemical anchor bolts (bonded with rebar adhesive) or through-wall bolts (clamped with backing plates across the wall) are prioritized. Friction-type expansion bolts are prohibited. Anchorage Position Requirements
Set anchor points on concrete structural columns or ring beams wherever possible. If anchoring onto brick masonry is unavoidable, increase embedment depth and adopt chemical anchors or undercut expansion anchors.
Core Construction Requirements
Detect concealed pipelines before drilling holes and thoroughly clean boreholes; wait for full adhesive curing after chemical anchor installation. Fit steel backing plates on the inner wall face for through bolts to sandwich the wall between two steel plates.
Load Dispersion for Large-Size Screens
Construct full-length steel base frames fixed to the wall with multi-point anchors, then mount screen rear supports to convert concentrated loads into uniformly distributed loads and reduce partial wall compression.
Conclusion
Glass curtain wall installation relies on original framing or supplementary hanging systems; steel structure installation focuses on standardized welding and anti-corrosion protection; brick-concrete wall installation requires qualified post-installed anchorage avoiding weak masonry sections. Pre-installation on-site substrate inspection, matching connector selection and reserved maintenance access lay the foundation for safe long-term screen operation.
