Common Application Scenarios for High-Altitude Hoisted LED Displays

5 views admin 2026-06-05

High-altitude hoisting is an irreplaceable special installation method for LED display projects. It refers to hoisting whole or split display cabinets via lifting equipment to elevated positions such as building rooftops, venue domes and suspended indoor voids without supporting wall surfaces for fixation. Its core advantages include zero floor occupation, unobstructed 360° viewing and maximized information coverage. However, due to high construction difficulty, stringent safety standards and relatively high costs, it is not a universal solution and is only adopted for special cases where conventional fixed mounting is infeasible.

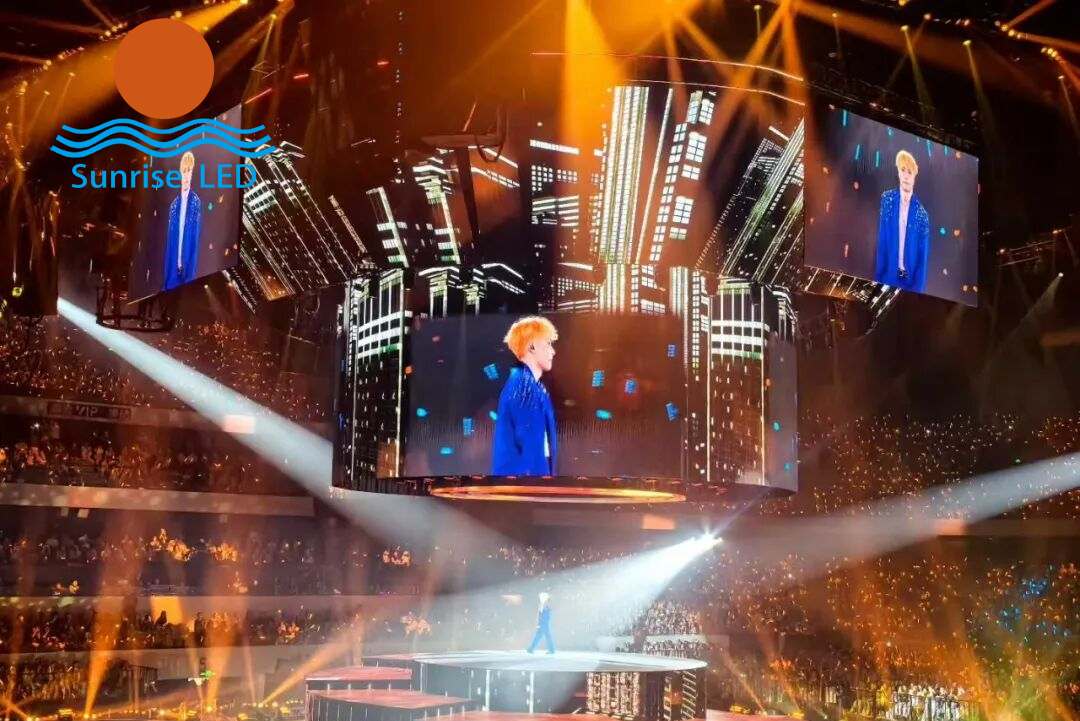

1. Large Sports Stadiums: Top Application of Hoisted LED Screens
This sector accounts for the largest share of high-altitude hoisted LED installations with the strictest technical requirements, and nearly all modern sports arenas are equipped with centrally suspended giant displays.
Typical Positions: Central venue dome, ring areas above spectator stands, top outer facades of stadium buildings
Irreplaceable Value: Stadium interiors feature open space lacking continuous mounting walls; only overhead hoisted screens enable all spectators across stands to clearly view live matches, real-time scores and slow-motion replays.
Panel Specifications: Mostly four-sided or octagonal ring-shaped cabinets, high refresh rate (≥3840Hz) and high contrast ratio to eliminate motion trailing for fast-paced footage.
Technical Requirements: Professional structural load calculation, multi-layer anti-fall safety locking devices, 7×24-hour continuous operation capability plus wind and seismic resistance.

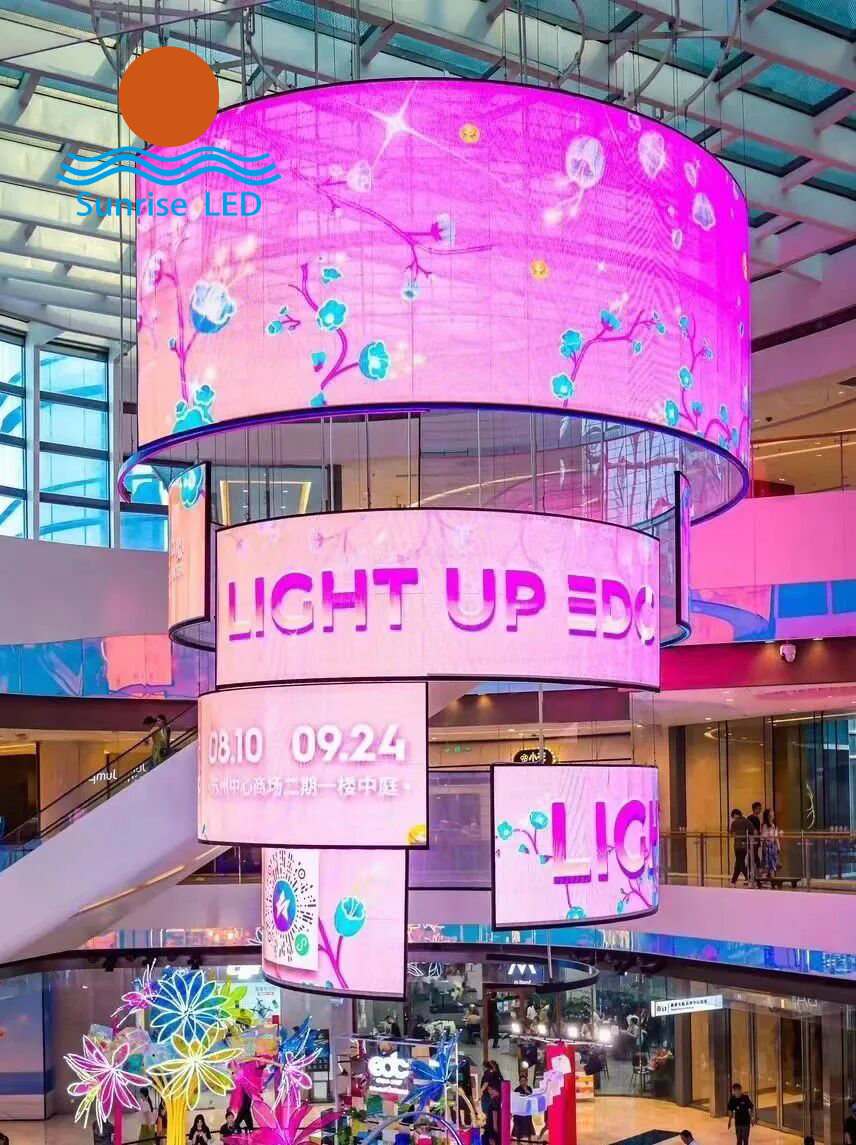

2. Rooftop & Overhang Zones of Commercial Complexes
Fixed LED screens dominate main facades of shopping malls, while rooftop and cantilever sections mostly adopt hoisting installation.
Typical Positions: Rooftop corporate signage, overhanging billboards atop annex buildings, large entrance overhead screens.
Panel Specifications: Outdoor high-brightness (≥7000cd/㎡), oversized dimension, full IP-rated waterproof & dustproof construction; partial models support double-sided display.
Technical Requirements: Wind load calculation based on local maximum 50-year return-period wind speed, reliable truss connection to main building framework, complete lightning protection & earthing, semi-annual routine safety inspection.

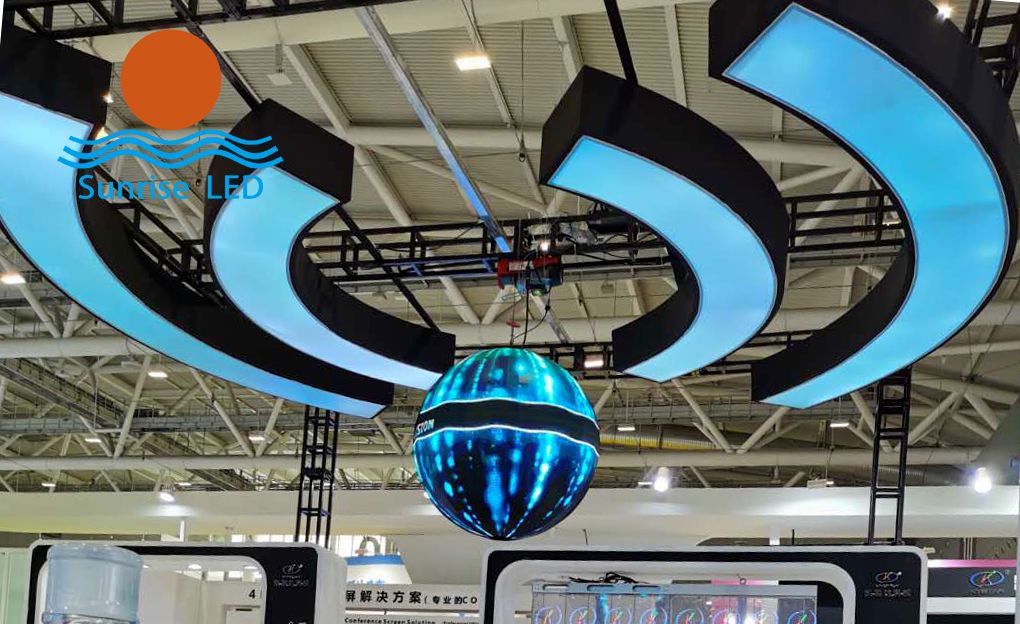

3. Convention & Exhibition Centers
Exhibition hubs are primary sites for temporarily hoisted rental screens alongside some permanently suspended displays.
Typical Positions: Central exhibition hall overhead space, main entrance top, upper outer walls of exhibition pavilions.
Panel Specifications: Permanent displays adopt modular structure; temporary rental cabinets support fast assembly and multi-source signal input.
Technical Requirements: Standardized quick-hoist system; temporary setups comply with provisional electricity and working-at-height regulations with on-site dedicated operators during events.
4. Cultural Tourism Performances & Theme Parks
This is the fastest-growing segment for suspended LED screens, mainly applied to build immersive visual effects.
Typical Positions: Above performance plazas, over mountains/lakes, theme park gateways and night tour venues.
Irreplaceable Value: Suspended installation preserves original natural scenery and architectural features to deliver floating immersive visuals impossible for wall-fixed displays.
Panel Specifications: Extensive use of transparent, grid and flexible LED panels with irregular splicing and dynamic special-effect support.
Technical Requirements: Premium outdoor weather resistance against extreme temperature, rain and snow, paired with dedicated synchronous effect control system.

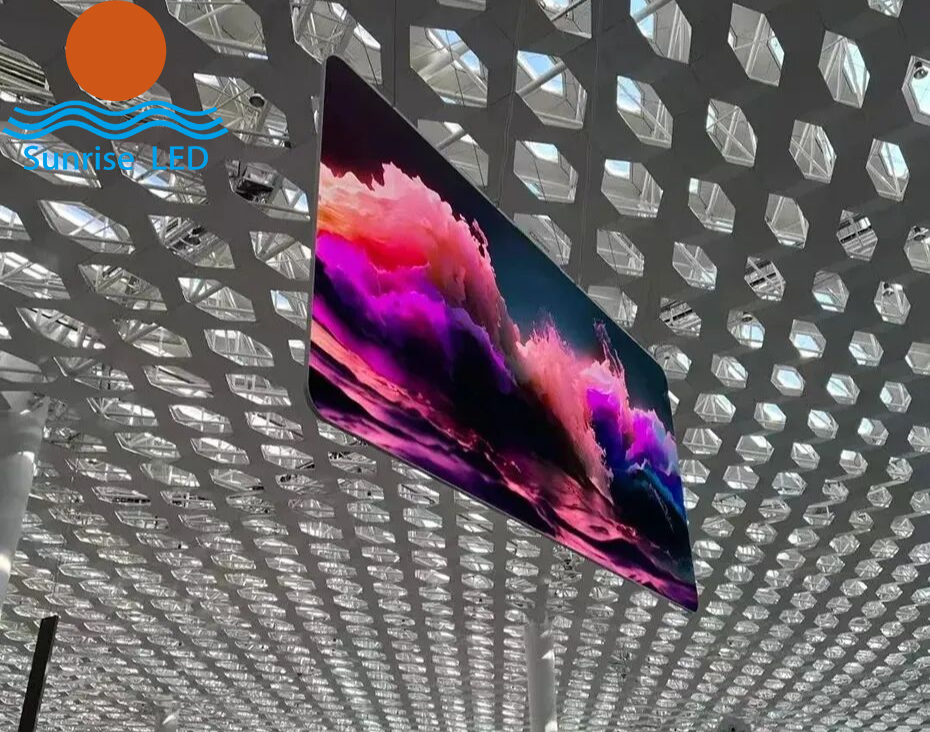

5. Indoor Lobbies of Transportation Hubs
Overhead suspended LED screens are widely installed inside transit terminals for passenger guidance and information release.
Typical Positions: Airport terminal atriums, high-speed railway waiting hall ceilings, overhead space of metro interchange zones.
Irreplaceable Value: Ground and wall space is reserved for passenger circulation and service facilities; hoisted panels avoid pedestrian obstruction while achieving full-area passenger coverage.
Technical Requirements: Low-noise power supply and cooling structure complying with fire codes plus anti-fall safety net installation.
Conclusion
High-altitude hoisted LED display is a customized solution targeting three core demands: no available mounting walls, full wide-area coverage and zero floor occupation, rather than a universal installation option. Its applications concentrate on five core fields: sports stadiums, commercial building rooftops, exhibition venues, cultural tourism performance sites and transportation hubs with rare usage elsewhere. Before project implementation, building structural condition, safety risks and practical application demands must be fully evaluated to guarantee long-term secure and stable screen operation.
