How Flip Chip Technology Improves Heat Dissipation and Service Life of LED Screens

8 views admin 2026-05-29

Flip chip technology restructures the physical layout and conductive structure of chips. It optimizes display performance in terms of heat conduction and component loss, effectively improving the overall temperature control and extending the service life of the equipment.
1. Restructure Thermal Conduction Structure to Greatly Enhance Heat Dissipation Shorten heat transfer paths and reduce thermal resistance

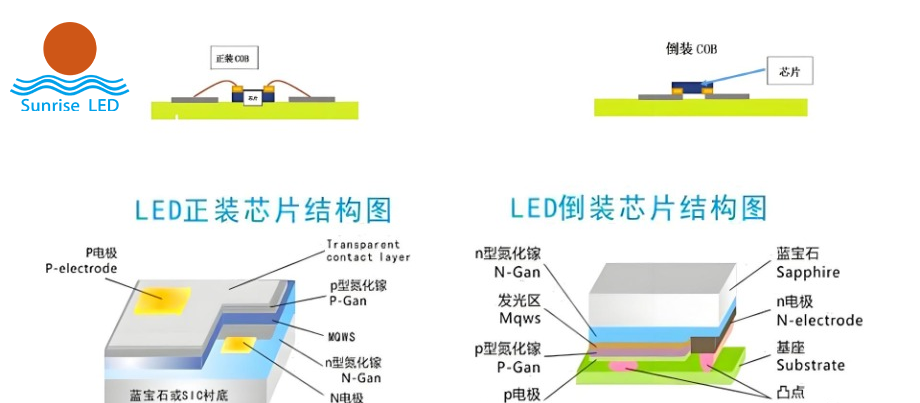

Traditional front-mounted chips rely on gold wires for heat transfer. Heat has to pass through multiple media, resulting in a long heat dissipation path.
For flip chips, the heat-generating surface is directly attached to the substrate. The heat source is closely connected to the thermal conductor, which drastically shortens the heat transfer distance. Heat dissipates rapidly without accumulating inside the chip.
Expand effective heat contact area
The entire bottom surface of the flip chip fits closely with the heat dissipation material. Compared with front-mounted chips that only make partial contact on the sides, it features a larger actual heat dissipation area and more uniform heat distribution. Even when the screen operates at high brightness for a long time, the temperature of core chips remains within a reasonable range.
Compatible with mainstream packaging processes to complete the overall heat dissipation system
The flip chip structure is fully compatible with COB, IMD and other mainstream packaging technologies. Combined with dedicated thermal conductive accessories and heat dissipation plates, it forms an integrated heat dissipation system to further boost the overall heat dissipation performance of the screen.
2. Eliminate Structural Risks to Effectively Extend Overall Service Life Remove gold wire bonding to avoid structural failures
This technology abandons the traditional gold wire connection method. It completely prevents gold wire breakage and desoldering caused by equipment vibration, thermal expansion and contraction, as well as deformation from temperature differences. The risks of sudden malfunctions such as black screen and dead pixels are reduced, delivering higher operational reliability.
Slow down component aging via low operating temperature
Efficient heat dissipation keeps chips from working at excessive temperatures. It reduces erosion on light-emitting chips, packaging glue and circuit substrates caused by high heat, slows material aging and controls light attenuation. The brightness and color uniformity of the display can stay stable for a long period.
Adapt to complex working conditions and slow down performance degradation In scenarios with large day-night temperature differences, frequent power on/off and 24/7 continuous playback, stable temperature control reduces component loss caused by thermal stress. The electrical parameters of circuits stay stable, enabling the large screen to operate steadily in the long run.
3. Practical Application Value

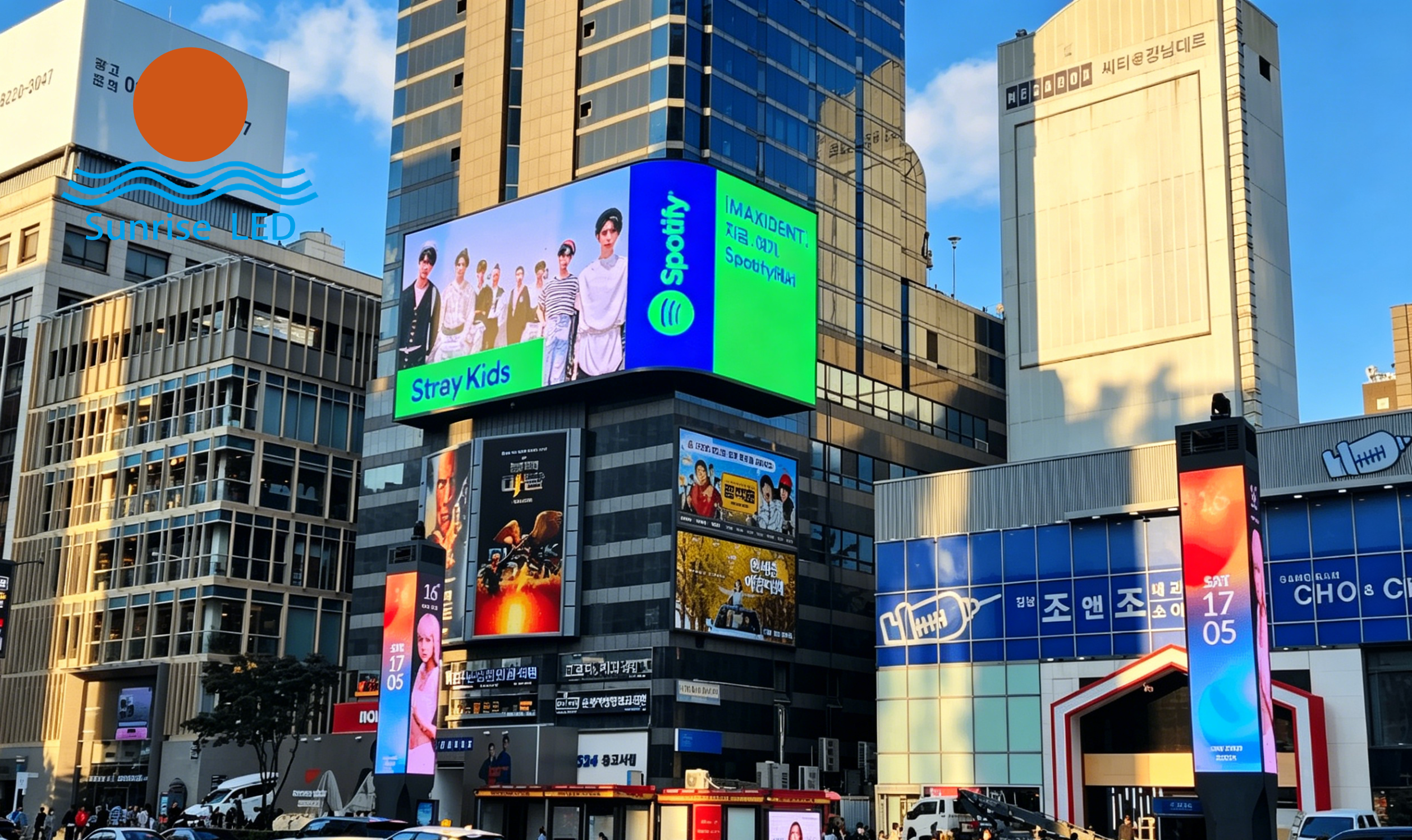

Currently, flip chip technology is widely adopted in indoor fine-pitch screens, high-end commercial displays and outdoor landscape LED screens. Under the same operating conditions, displays equipped with this technology have lower core temperature rise and slower component wear, with a noticeably prolonged stable service life. It has become one of the core technologies for upgrading display product quality.
