How Viewing Angle Affects the Actual Performance of Display Screens

2 views admin 2026-06-10

When undertaking LED display screen projects, most people tend to focus on mainstream parameters such as pixel pitch, brightness and refresh rate, while overlooking viewing angle — a critical detail. Many projects fail acceptance checks or receive customer complaints about poor visual performance, not due to inferior hardware quality, but improper selection and inadequate application of viewing angles. Though easily neglected, this parameter directly shapes the overall viewing experience and project reputation.
1. What Is the Viewing Angle of an LED Display Screen?

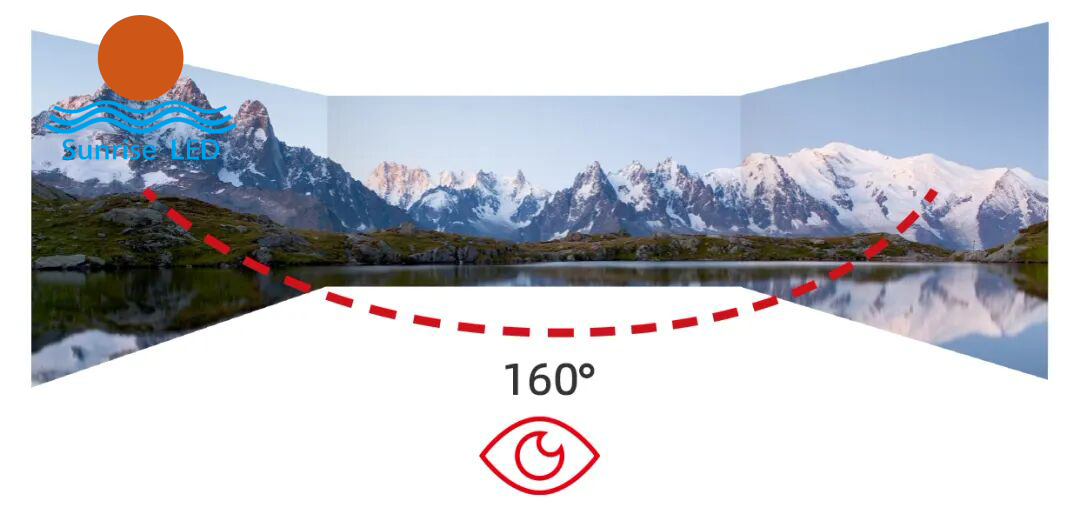

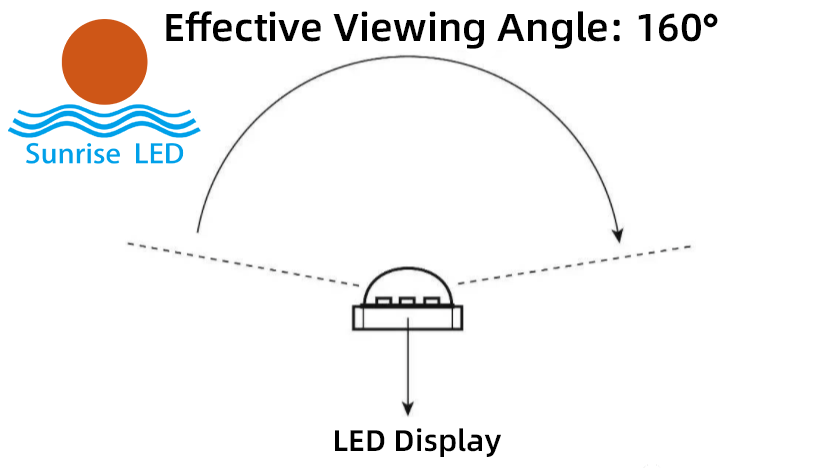

As a core visual parameter of LED displays, viewing angle is divided into horizontal viewing angle and vertical viewing angle. It refers to the maximum effective viewing range where the screen maintains standard brightness and color reproduction. Per industry standards, conventional displays feature a 120° horizontal viewing angle and 100° vertical viewing angle, while high-quality modules deliver a wider viewing range. Once viewers go beyond the rated angle, the screen will suffer noticeable brightness drop, color shift, dull and blurry images, which greatly ruin the viewing experience.
2. Three Major Problems Caused by Insufficient Viewing Angle
Many practitioners hold a misunderstanding that a screen is qualified as long as it looks clear from the front. In real application scenarios, however, audiences view the screen from various angles, and the drawbacks of a narrow viewing angle will become prominent. The common issues are as follows:
2.1 Indoor Scenarios: Color Deviation and Dim Images from Side Views

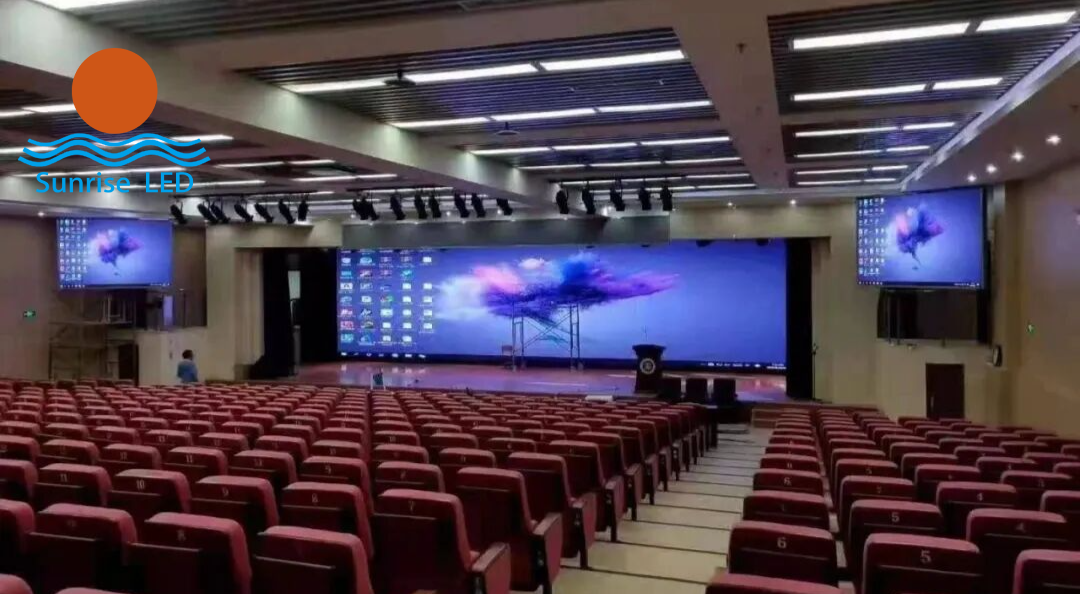

In conference rooms, lecture halls and command centers, audiences are positioned in front of the screen as well as on both sides. If the viewing angle is limited, the image will appear vivid and uniform from the front, but turn yellowish, bluish or much dimmer when viewed from the sides. Inconsistent visual performance undermines the premium ambiance of high-end indoor venues.
2.2 Spliced Large Screens: Layered Images and Color Discontinuity
Extra-large spliced screens widely used in exhibition halls and command centers require modules with highly consistent viewing angles. Narrow viewing angles or inconsistent performance among modules will lead to uneven brightness and varying color fading across different modules when viewed from the side. The entire screen will look patchy with visible layers and color breaks, ruining the integrated visual effect and resulting in failed project acceptance.
2.3 Outdoor & Rental Scenarios: Greatly Reduced Presentation Value
Commercial billboards, storefront displays and stage rental screens face audiences scattered over a wide area with random viewing angles. A narrow viewing angle causes blurry, dim and distorted images for side and distant viewers. The screens fail to fully deliver advertising content and stage visuals, which drastically cuts down their commercial and promotional value, leading to unstable performance in events and campaigns.
3. Practical Tips for Selecting Viewing Angles for Different Scenarios
Match viewing angle parameters to specific application scenarios to avoid operational risks fundamentally.
3.1 Indoor Fine-Pitch Screens (Conference Rooms, Command Centers, Exhibition Halls)
Prioritize modules with a wide viewing angle and high performance consistency. Balanced horizontal and vertical viewing angles ensure uniform visuals for long-time, close-range viewing from all directions, eliminating partial color deviation and dim areas.
3.2 Fixed Outdoor Screens (Pole-Mounted Screens, Storefront Screens, Commercial Billboards)
Optimize the horizontal viewing angle primarily to cover pedestrians on both sides of roads. There is no need to pursue an excessively large vertical viewing angle, which would cause unnecessary light dispersion and brightness loss. This approach balances excellent display effect and energy efficiency.
3.3 Stage & Event Rental Screens
Choose wide-view-angle screens with outstanding angular consistency. They cater to large audiences watching from diverse positions, ensuring stable colors and uniform brightness across the entire venue without obvious color breaks, so as to guarantee an excellent overall stage visual effect.
4. Core Industry Misconception: A Wider Viewing Angle Does Not Equal a Better Screen
It is a common misconception that the wider the viewing angle, the better the display. An overly broad viewing angle will disperse front-facing luminous brightness, resulting in dim front-view images, reduced clarity and degraded contrast, which impair the viewing experience for core audiences.
The professional selection principle is matching parameters to actual demands. Choose a suitable viewing angle based on the viewing range of the scenario to strike an optimal balance between brightness and viewing angle.
5. Conclusion
Parameters including brightness, pixel pitch and resolution set the basic visual quality of LED displays, while viewing angle determines the upper limit of overall on-site performance. Reasonable selection and application of viewing angles solve the problems of color deviation, dim images and layered visuals from multi-angle viewing. It delivers uniform brightness and consistent colors across the whole screen, effectively reducing after-sales complaints, and greatly improving project quality and customer satisfaction.
