Common Quick Installation Methods for LED Displays

4 views admin 2026-04-24

With the wide application of LED displays in commercial, cultural tourism, conference and other scenarios, installation efficiency has become a key factor affecting the speed of project implementation. Compared with the traditional cumbersome installation process, various quick installation technologies have become the mainstream in the industry today. They not only simplify construction steps and lower the installation threshold, but also ensure the stability and safety of the screen body.

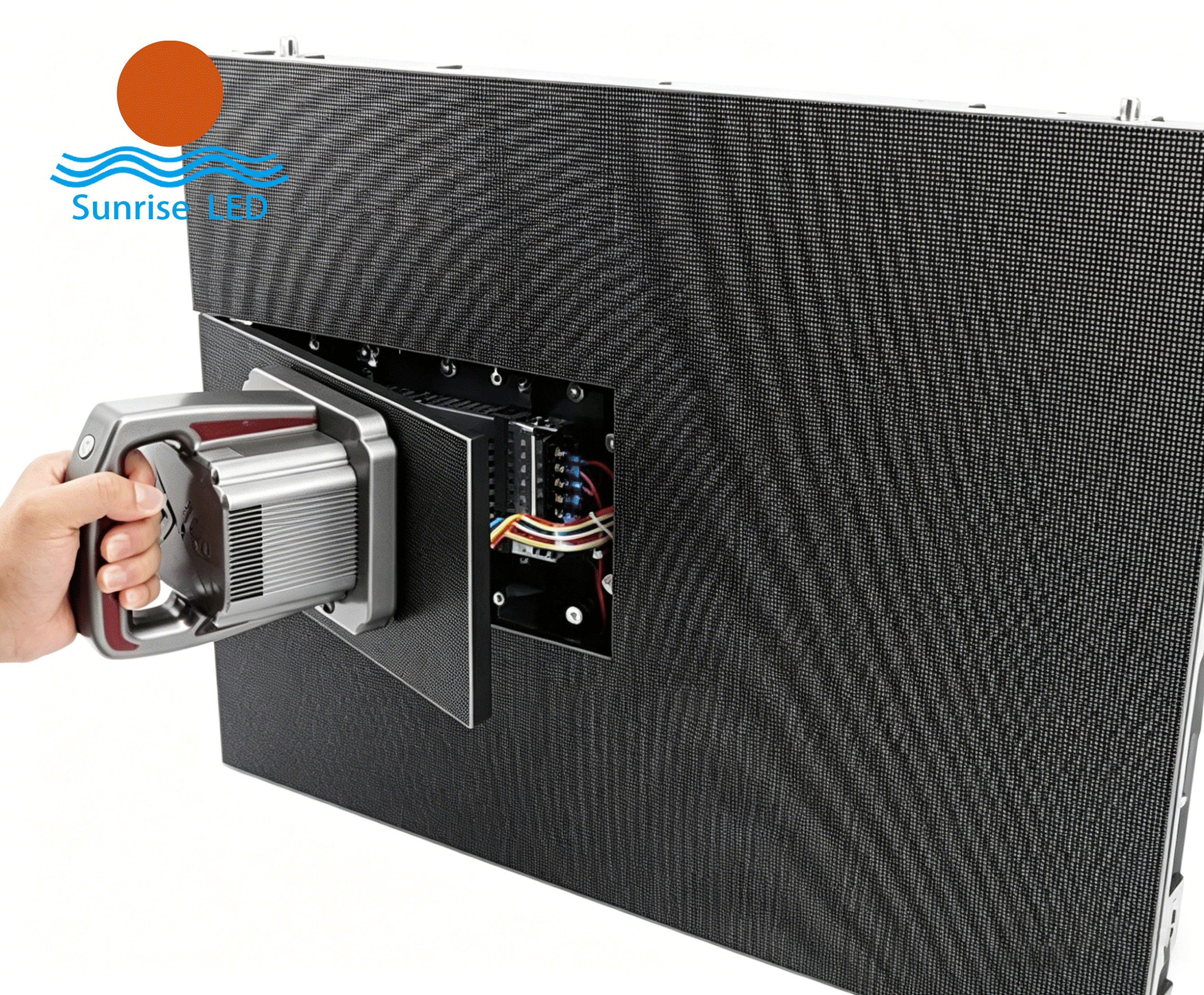

1. Magnetic Installation
Magnetic installation is one of the most commonly used quick installation methods for indoor small-pitch LED screens and conference screens at present. Its core design is to embed strong magnetic adsorption components in the LED modules and installation cabinets. The magnets on the back of the modules connect accurately with the metal contacts at the corresponding positions of the cabinets. Without screws or other fixing accessories, the module can be fixed simply by aligning it with the cabinet and attaching it gently.
The advantage of this installation method is convenient assembly and disassembly. A single module is light in weight and can be operated by one person. If a module breaks down in the later stage, it can be directly removed and replaced, greatly improving maintenance efficiency. It is mainly suitable for indoor flat walls, conference all-in-one machines, exhibition hall display screens and other scenarios, avoiding the tedious procedures of drilling and screwing, and shortening the installation period by 50%.
2. Quick Latch Splicing Technology
Quick latch splicing technology is mainly used in scenarios requiring frequent assembly and disassembly, such as rental screens and large screens for temporary exhibitions. The LED cabinets are equipped with one-button mechanical latches around them. The latches adopt a standardized structure and require no tools. Operators only need to align two cabinets and press the latches to achieve seamless splicing; the screens can be quickly separated by gently flipping the latches when unlocking.
The key to this technology lies in the accuracy and firmness of the latches. After years of industry optimization, mainstream latches now enable one-second splicing. During full-screen construction, a team can complete the installation of hundreds of square meters of screens within hours with coordinated work. Meanwhile, the splicing gaps are tiny without affecting the display effect. It is widely used in outdoor performances, temporary exhibitions, event venues and other scenarios.

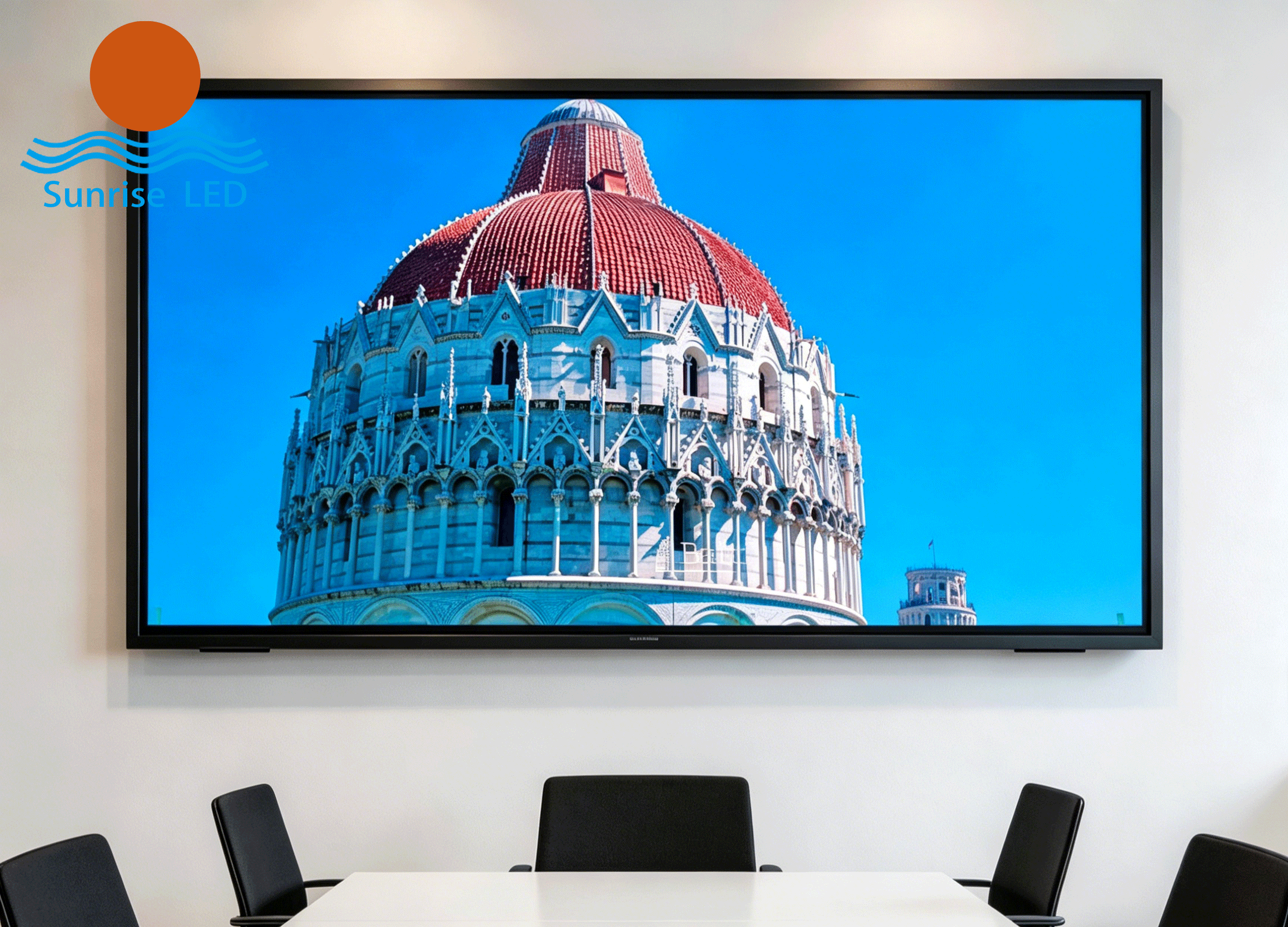

3. Drill-Free Wall-Mounted Quick Installation
Drill-free wall-mounted quick installation is specially designed for indoor commercial scenarios, suitable for store promotional screens, office building announcement screens and other scenes where walls cannot be damaged. Its core is a customized integrated wall-mounted hanging part. Before installation, only the benchmark hanging parts need to be fixed on the wall to ensure they are level and firm. Then the entire LED screen is aligned with the hanging parts and fixed by buckling, without drilling holes in the wall, which protects the wall integrity and simplifies the construction process.
This installation method has low requirements for walls, and is compatible with common walls such as tiles, latex paint walls and gypsum boards. The installation of a single screen can be completed by 1–2 persons with a short construction period, making it ideal for the rapid deployment of small indoor LED screens.
4. Modular Hoisting Structure
Modular hoisting structure is mainly used for high-altitude installation scenarios such as large indoor screens and ceiling screens in venues. It adopts special hoisting beams and standardized quick connectors. The hoisting beams are fixed in advance on the load-bearing structure of the ceiling or venue top, and the LED cabinets are quickly connected to the hoisting beams through connectors, which can be hung and assembled layer by layer from top to bottom.
The advantage of this method is the strong universality of standardized modules — all cabinets and connectors are interchangeable. No on-site welding or cutting is required during installation; only alignment and plug-in fixing are needed. It not only ensures the stability of hoisting, but also greatly improves high-altitude installation efficiency, and facilitates disassembly and adjustment for later maintenance. It is commonly seen in convention and exhibition centers, stadiums, large conference rooms and other venues.
5. Other Common Quick Installation Methods
In addition, integrated quick installation with floor stands and quick truss connection are also widely used in the industry. Integrated floor stand quick installation is equipped with a finished floor stand base, which can be assembled quickly without on-site processing. The screen modules can be directly mounted on the stand for use, suitable for exhibition hall front desks, live broadcast rooms, temporary promotional points and other scenarios.
The core advantages of these quick installation methods are reducing construction procedures and installation difficulty through standardized design, simplified fixing structures and optimized component combinations, while balancing the stability and safety of the screen body. They adapt to different application scenarios and meet various demands of commerce, rental, venues and other fields. They also promote the development of the LED display industry towards high efficiency, convenience and flexibility. Installation can be completed with simple training without a professional construction team, greatly reducing project implementation costs and cycles.
