Main Mechanical Operation Modes of LED Mechanical Screens

5 views admin 2026-04-17

In industrial applications where LED displays are deeply integrated with precision mechanical structures, mechanical screens have become core visual carriers for scenarios such as stage performances, commercial atriums, cultural tourism night tours, and high-end exhibition halls. Relying on mature industrial mechanisms including servo drives, linear guides, and synchronous transmissions, the industry has formed a stable and scalable mechanical operation system. The practical mechanical operation modes are mainly divided into two categories: single-dimensional basic motion and multi-dimensional composite linkage.
I. Single-Dimensional Basic Mechanical Operation Modes
Vertical Independent Lifting: The most widely used motion mode in industrial applications. LED display units are arranged in a matrix, and each unit achieves independent vertical lifting through lead screws, synchronous belts, or chain mechanisms. They can be combined to form three-dimensional effects such as waves, curved surfaces, and contour shapes. The mechanism is mature and highly stable, suitable for most indoor and outdoor kinetic display scenarios.

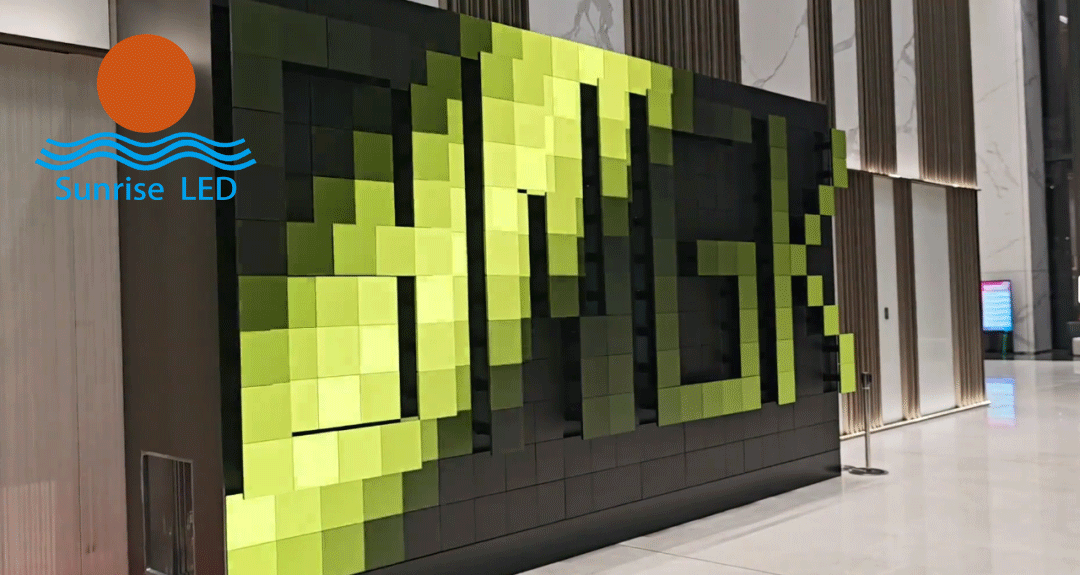

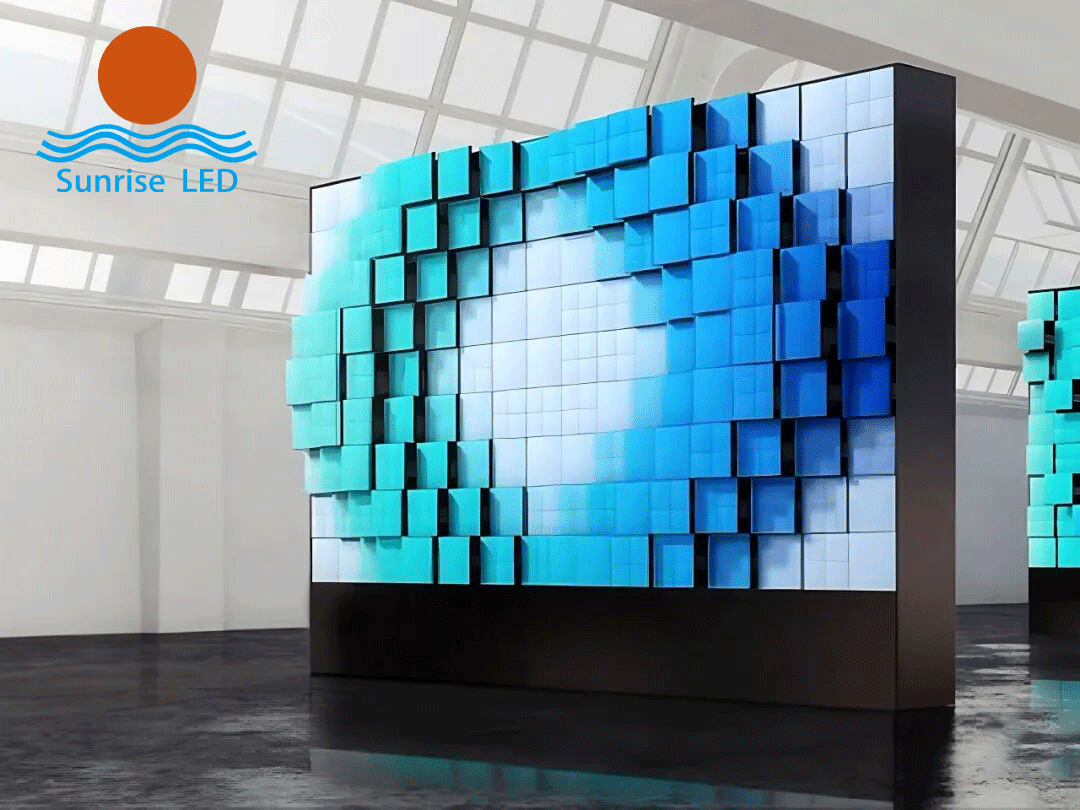

Depth Axial Telescopic Movement: Display units extend and retract forward and backward along the Z-axis, creating staggered spatial depth. Different from vertical lifting, this mode focuses on constructing three-dimensional spatial layers, and is mostly used in high-end custom exhibition halls and immersive art installations.
Horizontal Translation & Opening/Closing: The entire screen or segmented screens perform horizontal left-right translation, split opening, and staggered movement along linear guides. Some solutions support vertical translation and opening/closing, mainly driven by gear racks and heavy-duty guides. It is commonly used for main visual opening/closing on stages, spatial partitions, and passage installations.
Axial Flipping Movement: Divided into 180° forward-reverse flipping and limited-angle flipping. Units rotate around a fixed axis to switch between double-sided content. The linkage of multiple units can form dynamic texture effects. The mechanism is simple and reliable, mostly applied in creative display and information switching projects.

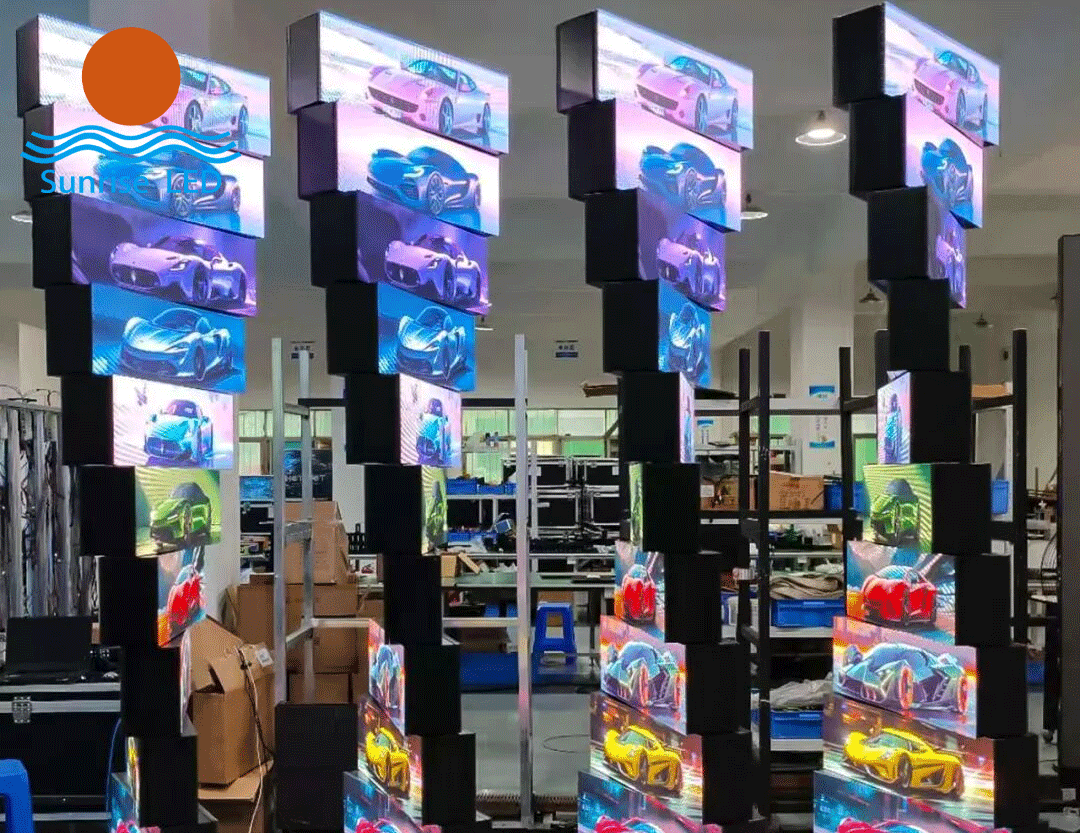

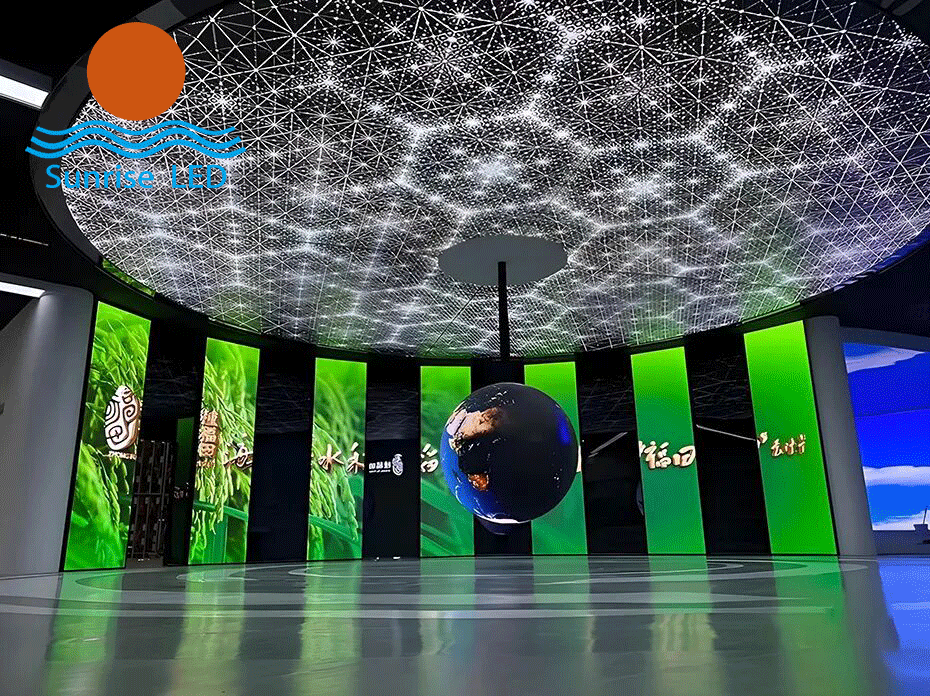

Fixed-Point Rotation Movement: Including integral rotation of the whole screen and independent rotation of single modules. Integral rotation is mostly used for cylindrical and circular display devices; independent module rotation is a multi-degree-of-freedom custom solution that enables multi-angle screen splicing, representing a high-end kinetic screen form.
Swing Arm Reciprocating Swing: Screen units are driven by crank swing arm mechanisms to reciprocate within a set angle, forming rhythmic dynamic effects. It is widely used in stage dynamic backgrounds and night tour lighting installations.
Long-Rail Roaming Movement: Single or multiple linked screens move along linear or arc long rails in a full range, some equipped with lifting mechanisms to realize screen position transformation. It is often used in press conferences, immersive theaters, and other scenarios.
Folding & Storage Movement: Hinge and folding arm structures are adopted to realize leaf-type or stacked folding of screens, meeting the needs of rapid storage and transportation for temporary exhibitions and mobile stages. It belongs to a functional mechanical motion mode.
II. Multi-Dimensional Composite Linkage Operation Modes In practical projects, composite motions are mostly adopted to achieve richer visual effects. Common composite forms in the industry include:
1. Composite of vertical lifting and depth telescopic movement, realizing true three-dimensional modeling. 2. Composite of translation/opening/closing and axial flipping, taking into account spatial transformation and content switching. 3. Composite of lifting and fixed-point rotation, where units rotate while displacing, presenting complex spatial forms. 4. Full-range multi-axis synchronous linkage, which is uniformly dispatched through a central control system to achieve precise matching of multi-unit, multi-dimensional motion and screen timing.
III. Control Logic Operation Modes
From the perspective of control execution, common operation logics in the industry also include:
1. Synchronous Linkage Mode: All units execute a unified trajectory, presenting an overall visual effect. 2. Asynchronous Independent Mode: Each unit moves with independent programming, forming differentiated dynamic effects. 3. Position Locking Mode: Units stop accurately at specified coordinates to maintain static three-dimensional modeling. 4. Audio-Video Following Mode: Mechanical motion is bound to screen and audio timing, realizing integrated presentation of content and motion.
With the continuous upgrading of precision servo control, real-time synchronization algorithms, and intelligent sensing technologies, the mechanical operation modes of mechanical screens are gradually evolving from fixed preset trajectories to flexible interaction, real-time response, and high-precision collaboration. Motion accuracy and linkage complexity continue to improve, further expanding the application scenarios and visual expression boundaries of kinetic LED display devices.
