LED display packaging technology has evolved from through-hole to Micro LED, with the core logic being the upgrade from discrete devices to chip-level integration. The industry continuously tackles three major pain points: smaller pixel pitch, higher image uniformity, and stronger protection and heat dissipation performance. Each generation of technology does not completely replace the previous one, but adapts to different application scenarios in a layered manner, forming an industry landscape of parallel coexistence.

First Generation: DIP (Dual In-line Package), the initial outdoor display solution

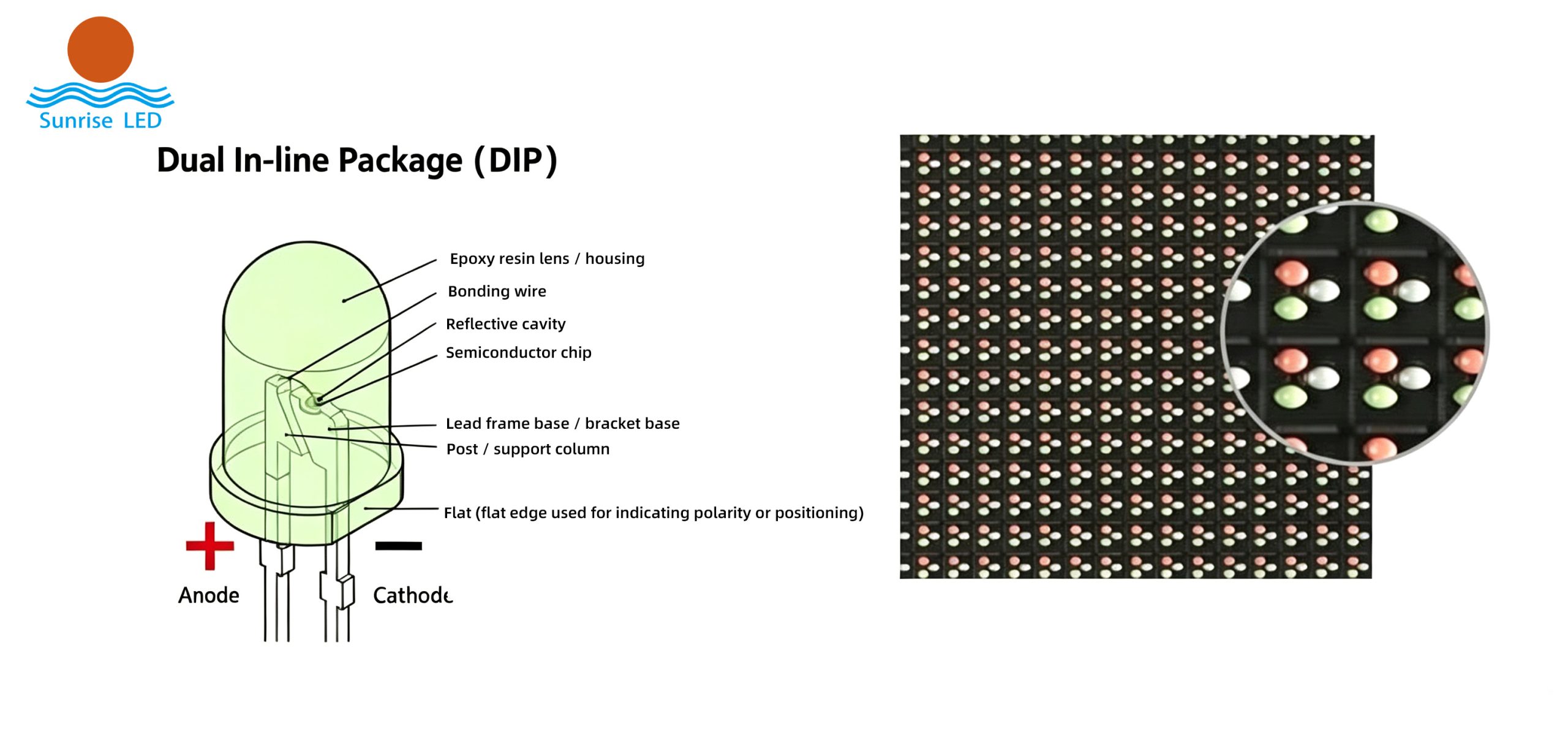

Structure and Process: RGB three-color chips are independently packaged into lamp beads with long leads, inserted into PCB holes using through-hole technology and fixed by wave soldering. A single pixel is formed by combining three independent lamp beads into Jiguangwang.

Core Advantages: The fully encapsulated epoxy resin structure is UV-resistant, waterproof and moisture-proof; suspended lead design provides high heat dissipation efficiency; high single-lamp brightness, suitable for long-distance outdoor advertising and highway large screens.

Technical Bottlenecks: Large lamp bead volume prevents achieving small pixel pitch, resulting in strong graininess when viewed up close; narrow viewing angle, poor color mixing uniformity, essentially eliminated for indoor scenarios.

Second Generation: SMD (Surface Mount Device), the foundation for indoor display popularization

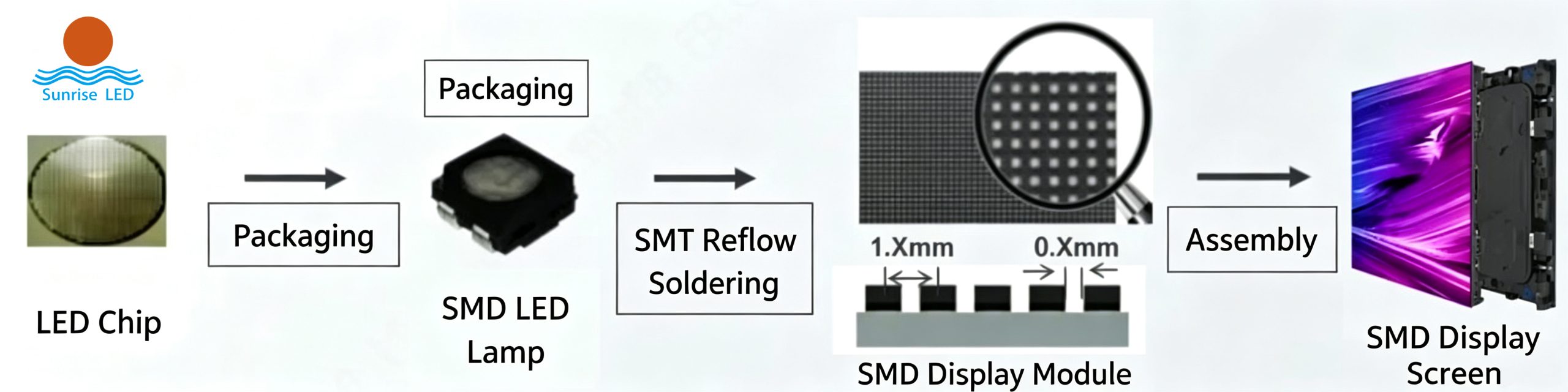

Structure and Process: Through-hole leads are eliminated; RGB three-color chips are packaged inside a single bracket lamp bead, mounted onto PCB using SMT high-speed pick-and-place machines. Three-in-one and four-in-one IMD integrated solutions have been derived, serving as a transitional technology bridging through-hole and integrated packaging.

Core Advantages: Lamp beads are thin and light, enabling conventional small pitch above P1.0, with a wider viewing angle and significantly better color uniformity compared to through-hole; mature industry chain, convenient maintenance, widely used in rental screens and conventional indoor conference room screens.

Technical Bottlenecks: Exposed bracket leads of lamp beads are prone to collision-induced lamp fall-off and moisture oxidation; discrete lamp beads have height differences, making color deviation and moiré problems difficult to eradicate at extreme fine pitch.

Third Generation: COB (Chip on Board) packaging, the implementation of high-reliability integrated packaging

Structure and Process: The independent lamp bead packaging step is skipped; bare LED chips are directly die-bonded onto the PCB substrate, and the entire module is uniformly encapsulated with epoxy resin. It is divided into two branches: formal COB and wire-free flip-chip COB.

Technical Bottlenecks: Integrated whole-board packaging leads to high difficulty in repairing local dead spots; the lack of pixel-level binning and sorting process makes large-area modules prone to block color deviation.

Fourth Generation: MIP (Mini/Micro LED in Package) pixel-level integrated packaging, a solution combining the advantages of COB and SMD

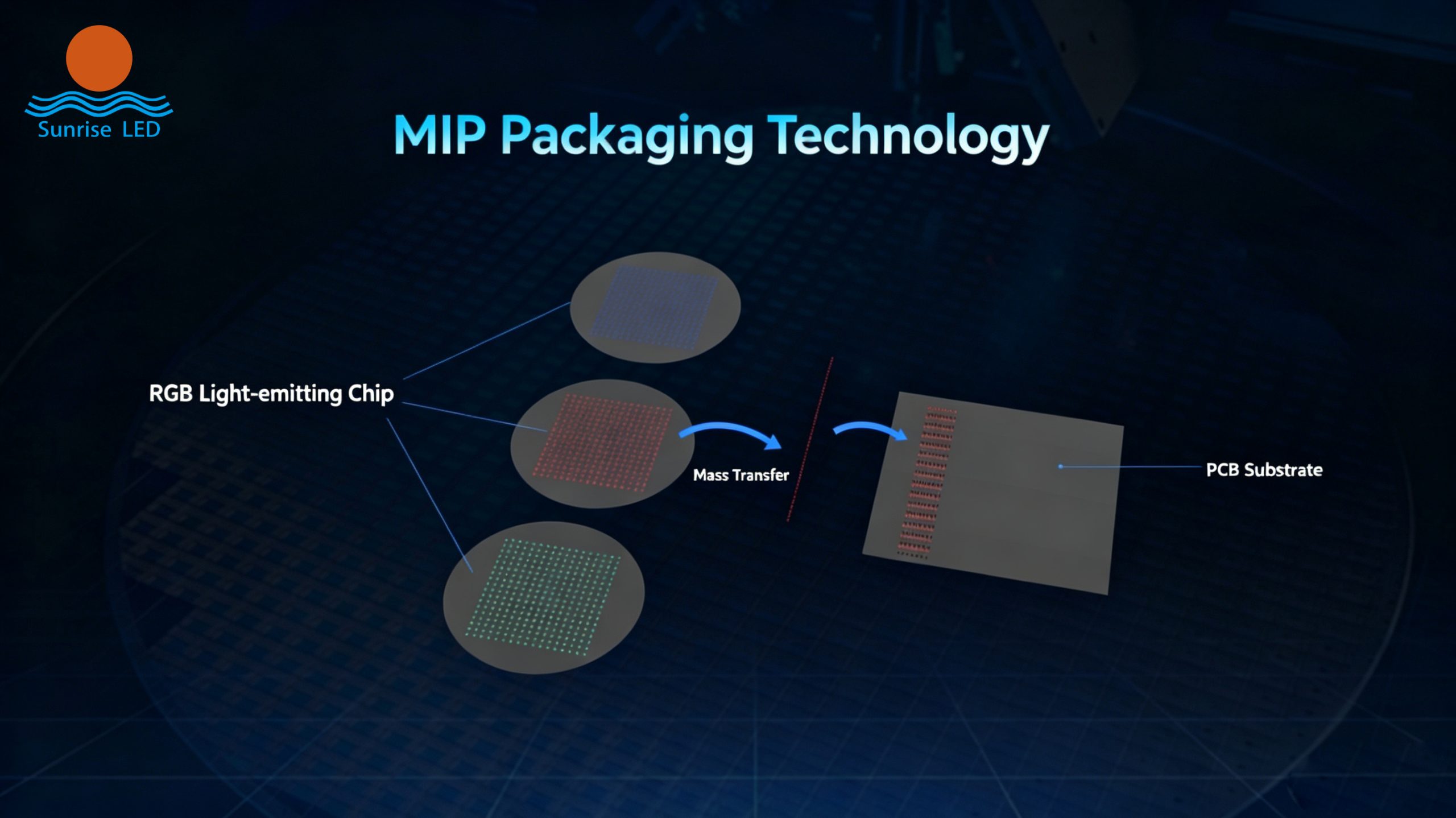

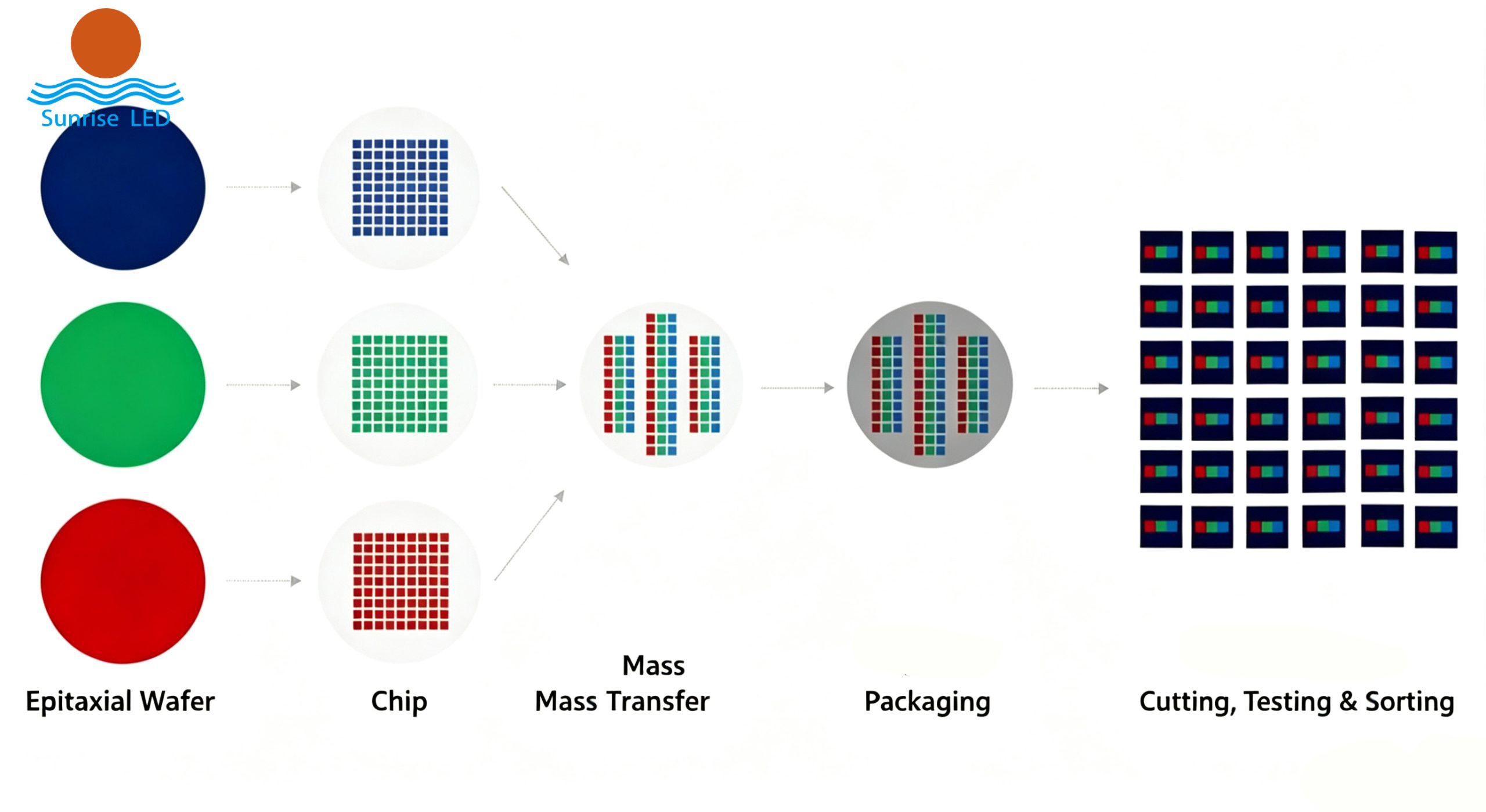

Structure and Process: Mass transfer technology is used to transfer Mini/Micro chips onto a carrier board for packaging, cutting them into standardized micro pixel units. After completing pixel-level binning and mixing, they are mounted onto the PCB substrate, balancing discrete device repairability and full-surface protection.

Core Advantages: Inherits COB's high protection and high contrast characteristics while retaining SMD's single-point repair capability; pixel-level binning thoroughly improves color deviation, greatly enhancing image uniformity, enabling stable mass production of P0.4-P0.9 micro-pitch products.

Technical Bottlenecks: More process steps than COB, higher equipment investment cost; limited by the size of micro package units, physical boundaries exist for extending to ultra-fine pitches below P0.4.

Fifth Generation: Micro LED chip-level mass transfer packaging, the next-generation ultimate display technology

Structure and Process: Chip size is reduced to within a hundred micrometers; through laser mass transfer technology, tens of millions of bare chips are precisely transferred onto a TFT driving backplane in one go, without brackets or traditional packaging housings, achieving direct chip interconnection.

Core Advantages: Pixel density has no physical upper limit, enabling ultra-high-definition displays below P0.1; fast response speed, extremely high contrast, lower power consumption, suitable for XR virtual production, AR near-eye displays, 8K large screens and other high-end cutting-edge scenarios.

Technical Bottlenecks: Mass transfer yield, chip repair, and large-scale production cost remain core industry bottlenecks; currently only small-volume commercial use, not yet fully popularized.

The entire packaging roadmap follows a clear evolution path: discrete devices → multi-pixel integration → bare chip direct bonding → pixel-level binning integration → micron-scale chip mass transfer. Technological iteration does not mean previous generations are eliminated: DIP is used for long-distance outdoor large screens, SMD for conventional commercial displays, COB for high-reliability indoor high-end scenarios, MIP for the mainstream micro-pitch market, and Micro LED for future ultra-high-definition cutting-edge displays. The five generations of technology coexist in a layered manner over the long term, jointly covering full-scenario display needs.
