    • 1. Indoor Fixed Screens (Conference rooms, exhibition halls, reception areas, indoor mall screens)

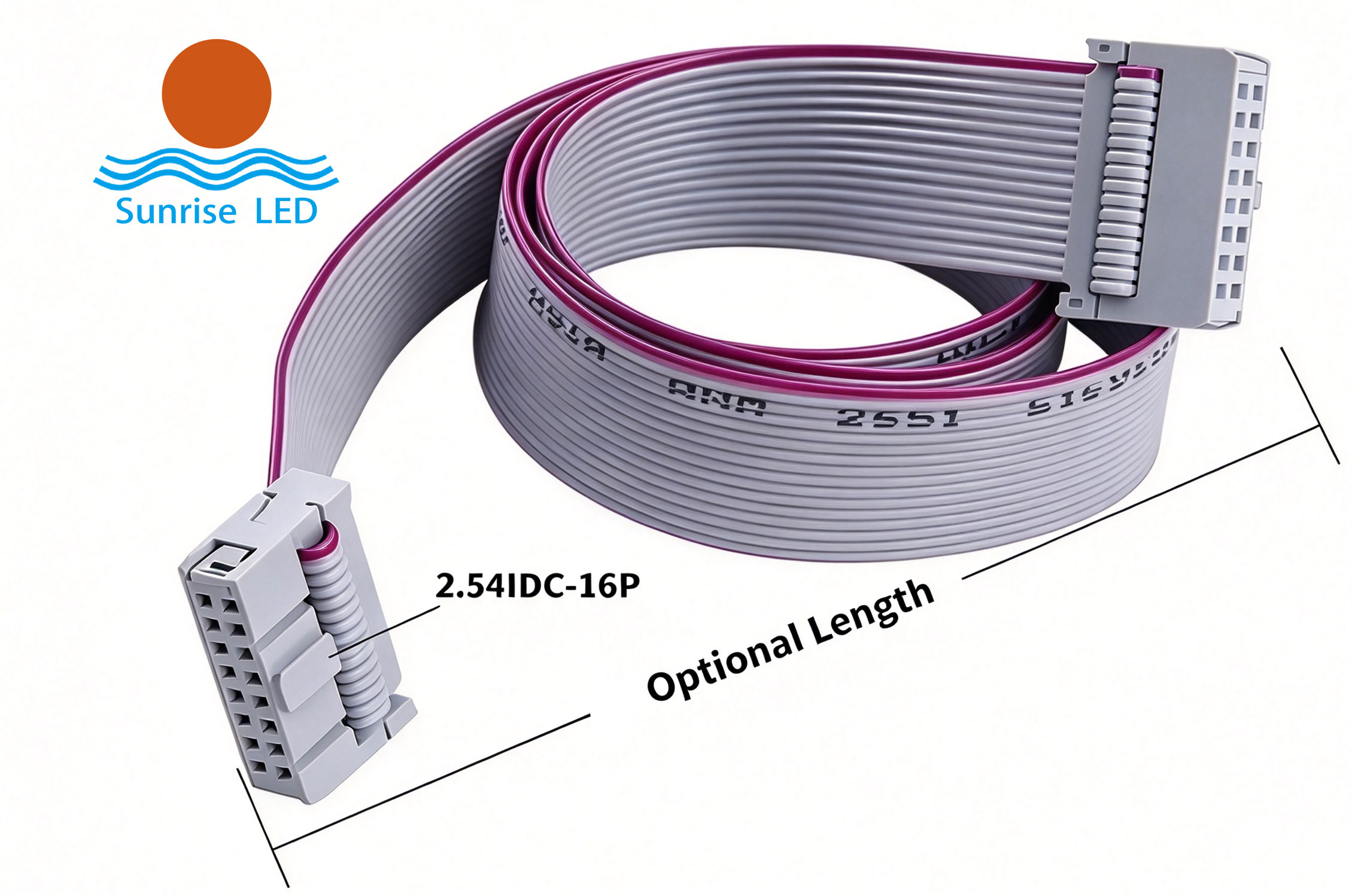

    • Standard Pitch P2.5-P10: HUB75 16-pin gray ribbon cable, 10–20cm short cable, tinned copper, standard FFC is sufficient.

    • Fine Pitch P1.25-P2: HUB40 20-pin ribbon cable, high-speed four-channel. Prioritize thickened shielded FFC to reduce EMI interference and avoid screen glitches or uneven low grayscale.

    • Features: Rarely disassembled, stable environment. Standard gray ribbon is fine; add shielding for fine pitch if budget allows.

    • 2. Rental Stage Screens (Performances, product launches, rapid event setups, frequent disassembly)

    • Mainstream P2.6/P2.8/P3.91: HUB75 high-flexibility reinforced ribbon cable, thickened copper foil, resistant to repeated bending, gold-plated fingers to withstand plugging wear; signal aviation plug harnesses for inter-cabinet connections.

    • Requirements: High tensile strength, not easily broken. Avoid cheap standard FFC; frequent plugging can easily break the core wire causing flickering. Focus on short cables inside the cabinet with stiffener-reinforced FFC.

    • 3. Outdoor Fixed Advertising Screens (Storefront screens, exterior wall screens, temperature differences/moisture/lightning interference)

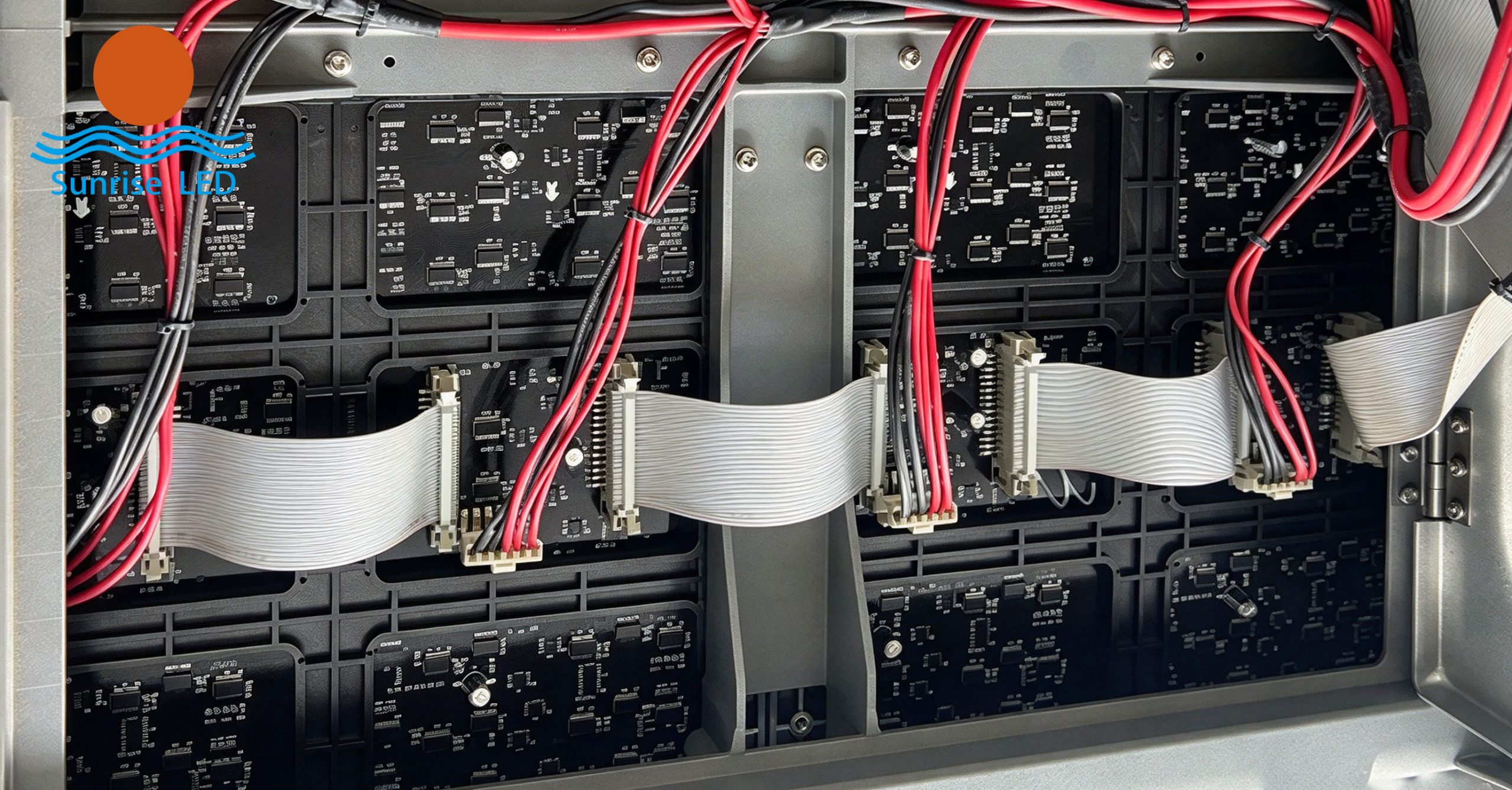

    • P5-P10 Outdoor Modules: HUB75 moisture-proof tinned ribbon cable. Prioritize shielded FFC. Ensure internal cabinet sealing; gold fingers should be anti-oxidation treated.

    • Pain Points: Condensation, high temperatures, strong electromagnetic interference. Strictly prohibit standard color ribbon cables (poor oxidation resistance, easily turns black outdoors in 1-2 years).

    • Cable material: Gray tinned copper, shielded version preferred; pair with shielded power cables.
    • 4. COB Fine-Pitch / Control Room Command Screens (P0.7-P1.5, ultra-high density)

    • HUB40 high-density shielded ribbon cable; some solutions use 26P/30P high-speed FFC. Differential signals, low crosstalk. Shielding is mandatory to ensure stable low grayscale and high refresh rates; slight interference can cause noise or color shift.

    • Tip: Keep length as short as possible to reduce signal attenuation; attach foam to the ribbon cable for shock absorption.
    • 5. Single/Dual Color Doorway Screens (Store scrolling text)

    • Simple 16-pin color/gray ribbon cable. Aluminum-magnesium wire or tinned copper is acceptable. Cost-first. Low scan and low-speed signals require very low shielding requirements.
