    • Masks, glue filling, and coatings serve different purposes in LED displays. A mask is a structural light-shielding component, glue filling is an encapsulation and protection process, and coating is a surface optical treatment. Their effects on display performance mainly involve brightness, contrast, viewing angle, color reproduction, reflections, heat dissipation, and maintainability.
    • 1. Mask

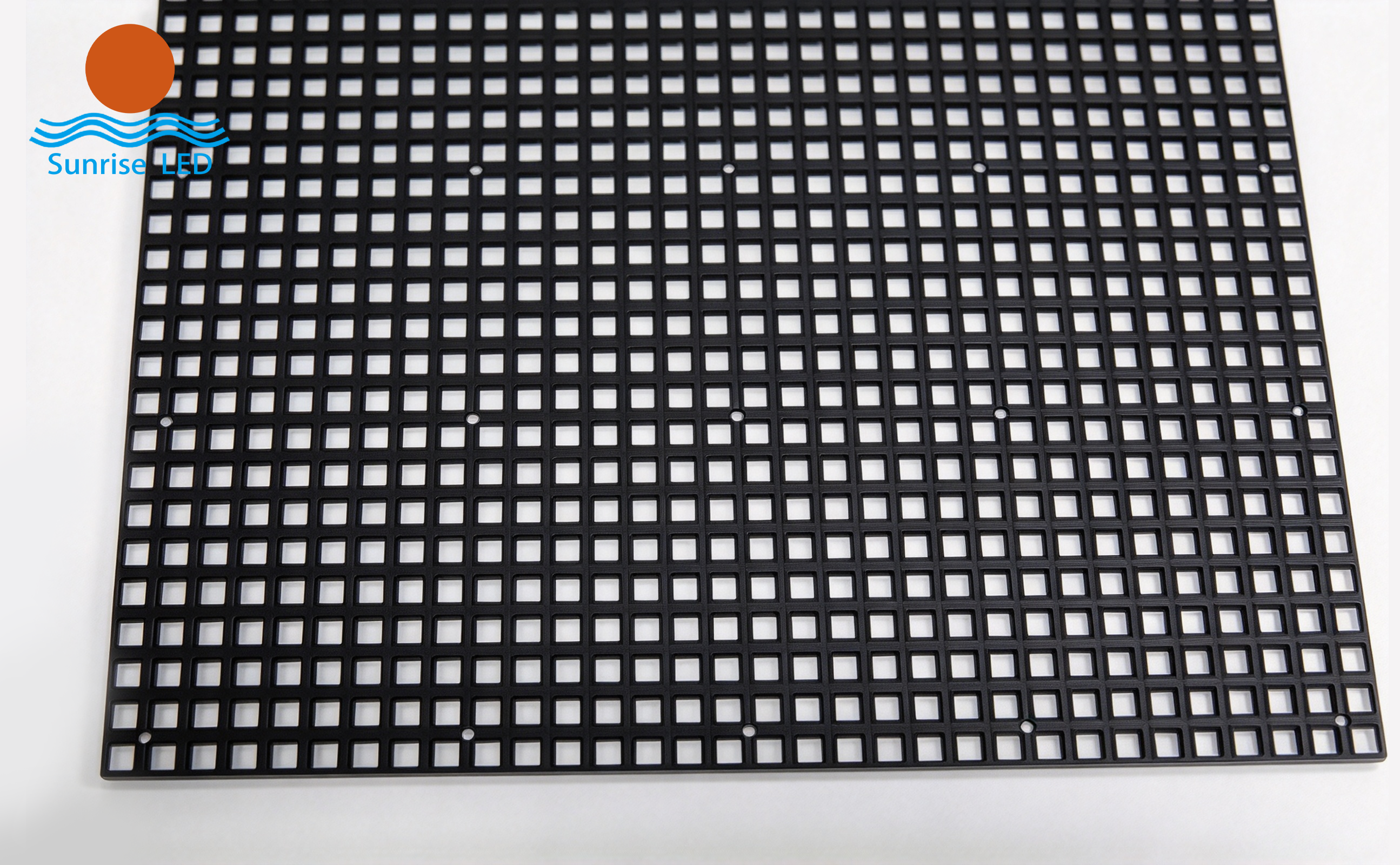

    • A mask is typically a black or matte plastic grid installed between LED lamps. It provides light shielding, protection, and light control.

    • 2.Reduced light crosstalk: The light-shielding walls reduce interference between adjacent pixels and improve display uniformity.

    • 3.LED protection: The mask protects LED lamps against scratches and minor physical damage.

    • Disadvantages and Potential Risks

    • 1.Reduced brightness: A low aperture ratio blocks some emitted light and reduces brightness.

    • 2.Limited viewing angle: Excessively high shielding walls narrow the viewing angle, causing the display to appear darker or show color shifts when viewed from wider angles.

    • 3.Moiré patterns: Improper mask design may create moiré patterns when interacting with the pixel array.

    • 4.Increased reflections: A glossy mask may reflect ambient light, reducing contrast instead of improving it.

    • Key factors: Color, matte or glossy finish, aperture ratio, thickness, and shielding angle.
    • 2. Glue Filling

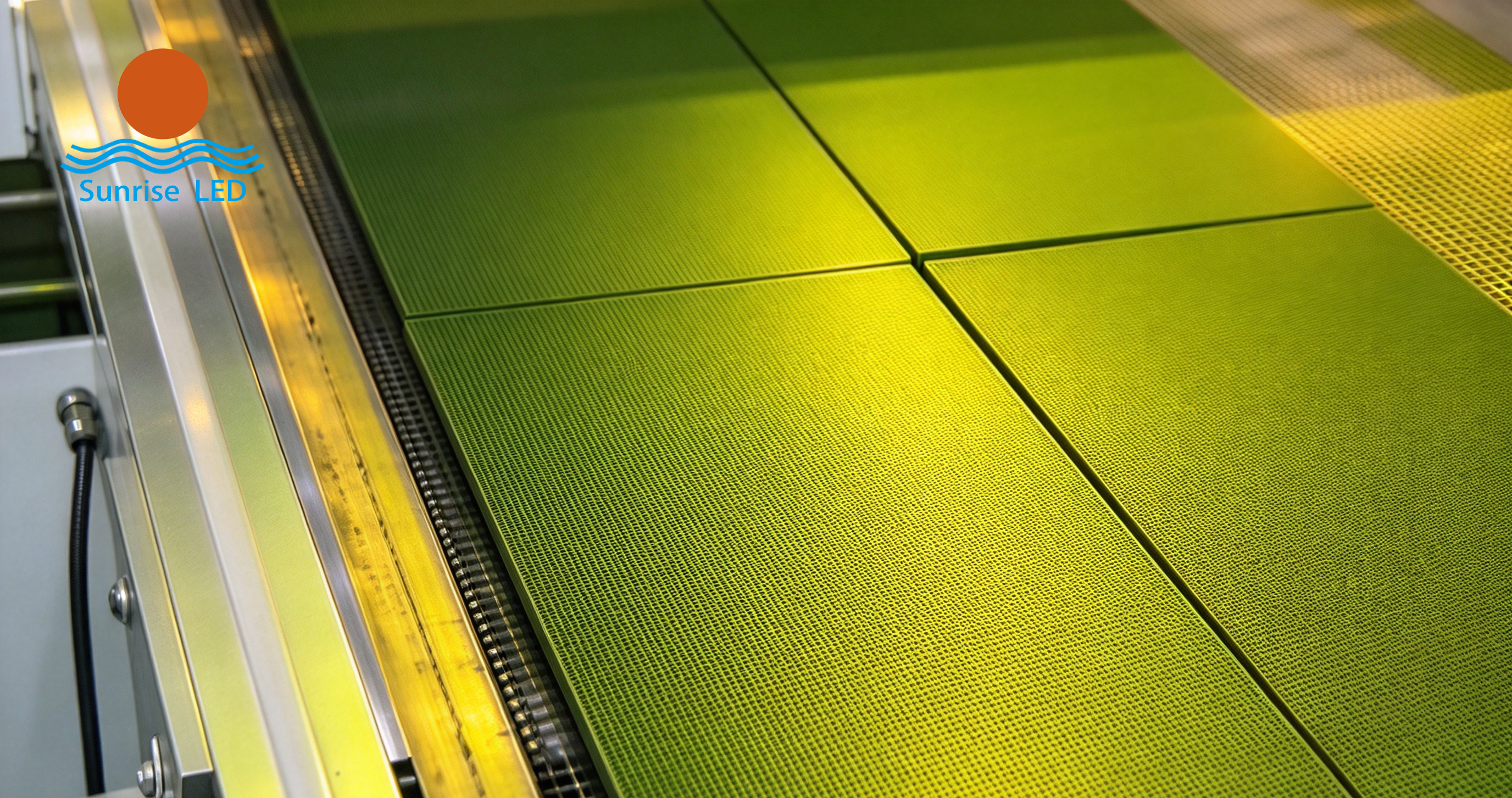

    • Glue filling involves applying a layer of encapsulating material over the LED module surface. Common materials include epoxy resin, polyurethane, and silicone. The process is primarily used for waterproofing, moisture protection, and impact resistance.
    • Advantages

    • 1.Enhanced protection: Significantly improves resistance to water, dust, salt spray, and vibration, making it suitable for outdoor and harsh environments.

    • 2.Improved contrast in some applications: Black potting compounds can block stray light and help improve contrast to some extent.

    • 3.Potentially improved light extraction: The refractive index of the encapsulant may fall between those of the LED package and air, potentially reducing total internal reflection at interfaces and slightly improving light extraction efficiency.
    • Disadvantages and Potential Risks

    • 1.Surface reflections: A smooth, glossy glue surface may produce specular reflections, reducing contrast.

    • 2.Uneven brightness and color: Uneven glue thickness may cause brightness or color non-uniformity, as well as halos and light crosstalk.

    • 3.Yellowing: Some epoxy materials are prone to yellowing over time, resulting in white balance shifts and color degradation.

    • 4.Heat dissipation issues: Poor thermal conductivity may affect heat dissipation and accelerate light output degradation and color drift.

    • 5.Limited repairability: Once the module has been encapsulated, individual LED repair is generally difficult. Replacing the entire module may be necessary.

    • Key factors: Glue type, transparent or black formulation, thickness, surface flatness, refractive index, and yellowing resistance.

    • 3. Coating

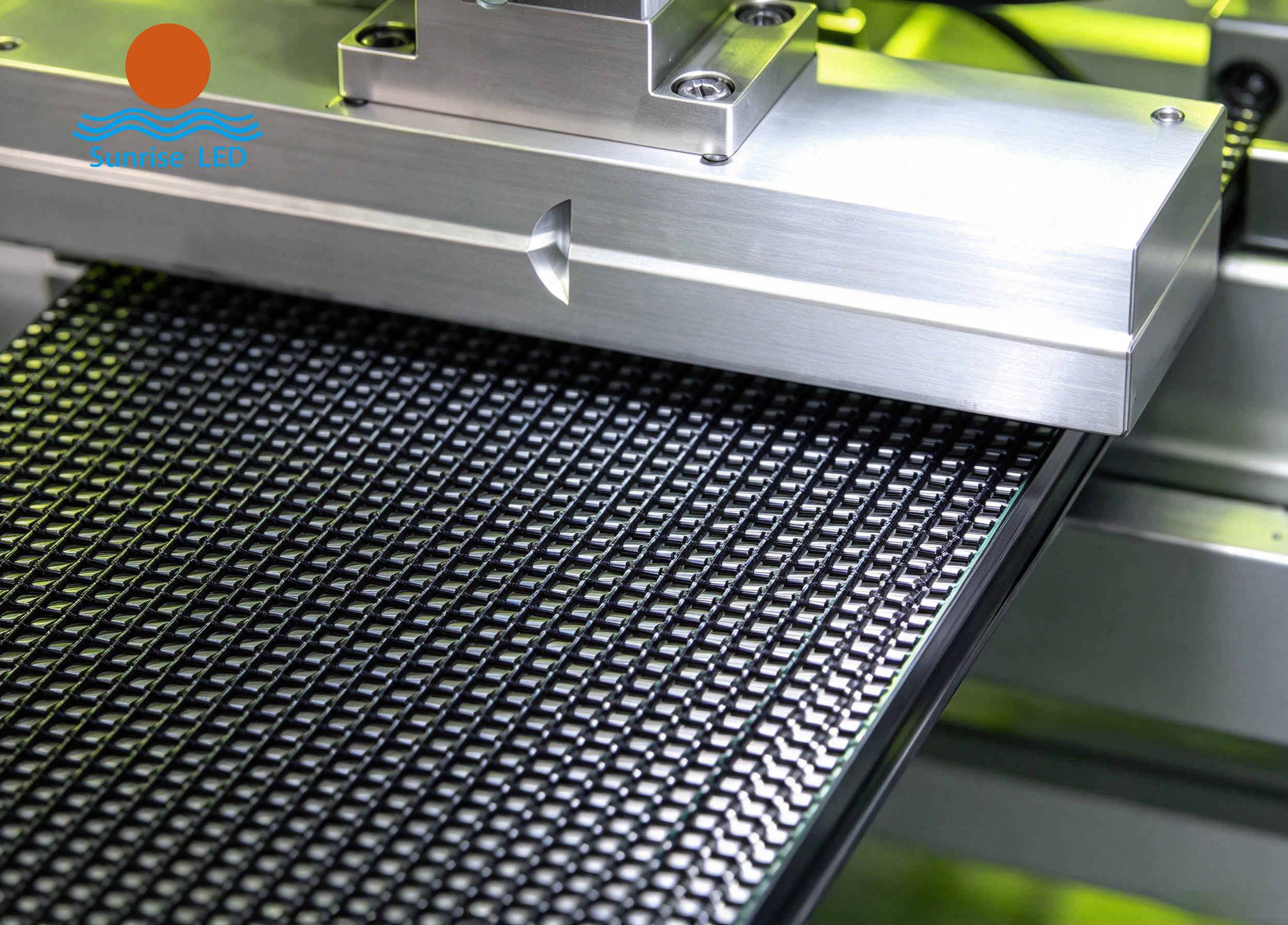

    • Coating involves applying optical films, such as AR, AG, AF, and HC coatings, to LED lamps, modules, or protective glass surfaces.

    • Types of Coatings and Their Effects

    • 1.AR (Anti-Reflective Coating): Reduces surface reflections and increases light transmittance. It can improve apparent brightness and contrast while helping preserve color purity.

    • 2.AG (Anti-Glare Coating): Converts mirror-like reflections into diffuse reflections, reducing interference from ambient light. However, it may introduce haze, reduce image sharpness, and affect black-level purity.

    • 3.AF (Anti-Fingerprint Coating): Prevents fingerprints and makes surfaces easier to clean, with minimal optical impact.

    • 4.HC (Hard-Coating): Improves surface hardness and scratch resistance.

    • Potential Risks

    • Poor film design or manufacturing processes may cause color shifts, viewing-angle-dependent color differences, poor durability, or surface scratches.

    • Key factors: Coating type, number of layers, uniformity, weather resistance, and cost.

    • 4. Conclusion

    • For high contrast and deeper blacks: Prioritize a black matte mask combined with suitable AR/AG coatings.

    • For high brightness: Choose an AR coating with high transmittance, use a mask with a high aperture ratio, and avoid unnecessarily thick glue layers.

    • For outdoor waterproofing and moisture protection: Glue filling is highly effective, but it may compromise optical performance, heat dissipation, and repairability.

    • Actual performance depends on the materials, thickness, manufacturing processes, and pixel pitch.

    • Masks, glue filling, and coatings are often used in combination. The optimal configuration should be selected according to the application, such as indoor or outdoor displays, fine-pitch LED displays, rental displays, and COB/GOB packaging technologies.
