Differences Between Common-Cathode and Common-Anode LED Display Technology: More Than Just Heat

8 views admin 2026-08-14

I. Fundamental Differences in Principle
Definition of common anode: The positive terminals of all red, green, and blue LED chips are connected together and tied to a single positive voltage (usually 5V). The negative terminals are individually controlled by driver ICs; the LED lights up when the IC pulls the terminal low.
Definition of common cathode: The negative terminals of all LED chips are connected together and tied to ground (0V). The positive terminals are individually supplied by driver ICs; the LED lights up when the IC outputs a high level.
Core difference: Common anode is "unified positive supply, individual negative control," while common cathode is "unified ground, individual positive supply." This difference in connection determines subsequent differences in power supply, power consumption, control logic, and other aspects.
II. Energy Consumption and Heat: The Most Intuitive Difference
Different LED chip voltage requirements: Red chips operate at approximately 1.8–2.2V, while green and blue chips operate at approximately 2.8–3.2V; the three are not the same.
Voltage redundancy waste in common anode: Common anode uses a unified 5V supply. To meet the 3V requirement of green and blue, the voltage must be sufficient, but red only needs 2V. The extra 3V drops across the current-limiting resistor or driver IC on the red channel and is entirely converted into heat. This energy produces no light output at all.
Precise voltage supply in common cathode: Common cathode supplies red, green, and blue separately, with approximately 2V for red and 3.3V for green and blue. Each color receives a voltage closest to its requirement, resulting in almost no wasted voltage drop.
III. Color Performance: Common Cathode Is More Stable
Color cast at low grayscale: In common anode, because red has voltage redundancy, at low brightness display the red produces a slight amount of extra light, causing dark scenes to appear reddish and colors to be impure. In common cathode, each voltage path is independent and precise, so red has no overvoltage at low grayscale, color reproduction is more accurate, and dark transitions are smoother.
Calibration cost difference: Common anode relies on point-by-point calibration to correct the low-grayscale reddish tint. Calibration equipment investment and labor time costs are high, and calibration data must be updated periodically. Common cathode achieves good color consistency out of the factory with essentially no special calibration, and later maintenance is also more convenient.
IV. Cost and Maintenance: Common Anode Is Simpler
Power supply cost: Common anode requires only one 5V switching power supply; the structure is simple and procurement cost is low. Common cathode requires at least two output voltages (2V and 3.3V), or even three independent outputs. The power module is more complex and the unit price is higher, but because total power is reduced, the number of power supplies can be reduced. The overall cost difference depends on project scale.
Driver IC complexity: Common anode ICs are only responsible for switching on and off; timing control is simple, the technology is mature, and development and usage barriers are low. Common cathode ICs must simultaneously manage timing and current regulation for multiple voltage channels, placing higher demands on chip design and manufacturing, and they are more expensive.
Cable and wiring requirements: The low-voltage section of common cathode (especially the 2V red supply) has significant voltage drop over long-distance transmission, requiring thicker cables, and the power supply lines cannot be too long; otherwise, brightness at the far end will be insufficient. Common anode has a higher supply voltage (5V), greater tolerance for line loss, and fewer wiring restrictions.
Maintenance convenience: Common anode circuit structure is universal, maintenance tools and spare parts are abundant, and ordinary technicians can handle repairs. Common cathode circuits involve multiple voltages; troubleshooting is more complex, repairs require specialized personnel and specific spare parts, and repair turnaround is longer.
V. How to Choose: Depends on the Application Scenario

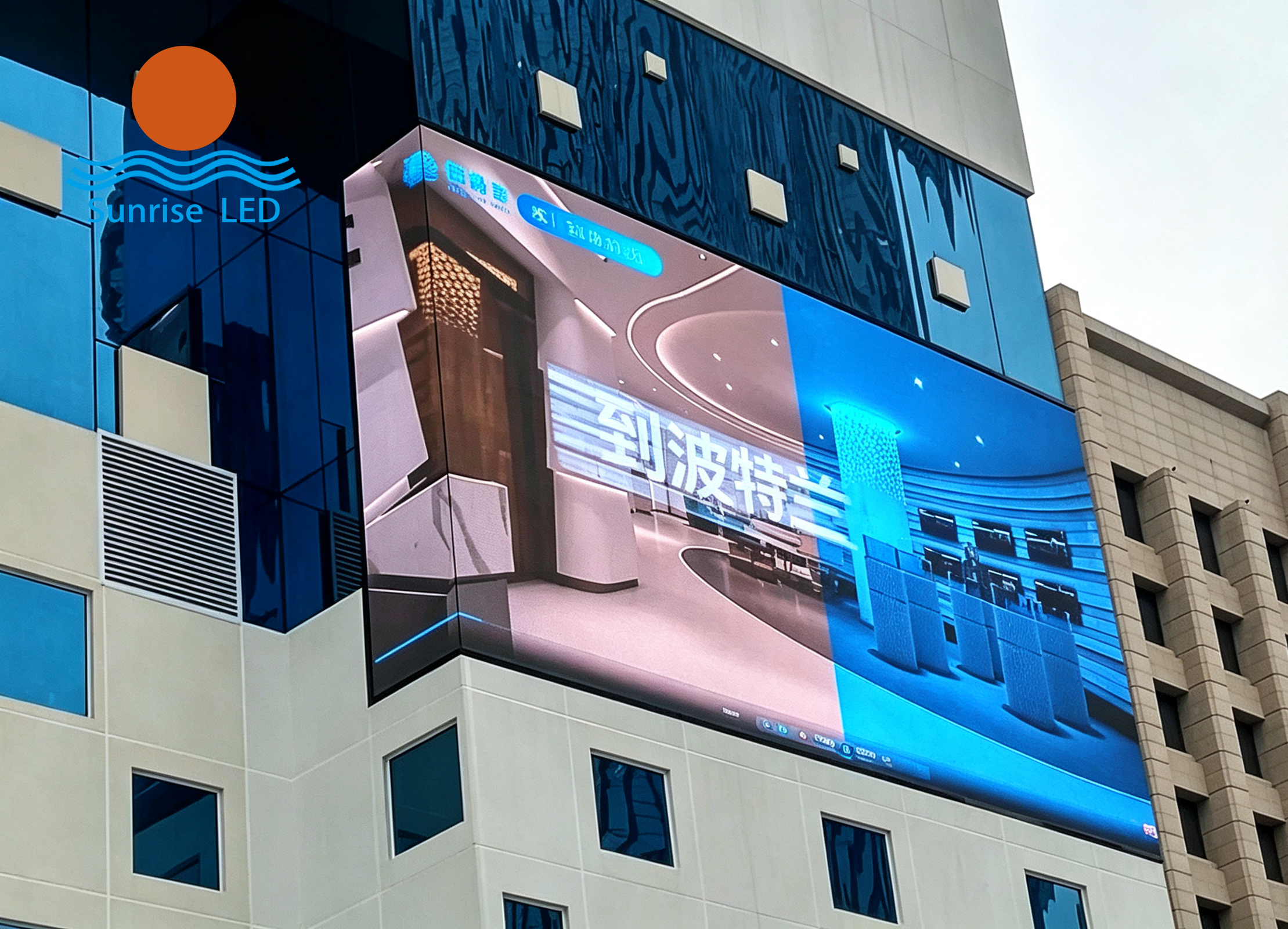

Long-term fixed outdoor installations: Running more than 10 hours per day, electricity cost is the main expense. The electricity savings of common cathode typically cover the initial premium within 1–2 years, with continued benefits afterward; common cathode is preferred.
Rental screens and temporary event screens: Low usage frequency, limited electricity expense, and frequent dismantling and transport. Common anode is low-cost, structurally robust, and quick to repair; it is more suitable.
Locations with limited power supply: Such as old residential areas, temporary power, or generator supply. The low starting current and peak power of common cathode can effectively prevent circuit breaker trips and ensure stable operation.
Overall recommendation: There is no absolute superiority. The main trade-offs are three points: 1) long-term electricity cost vs. initial investment; 2) power supply and wiring conditions at the installation site; 3) required level of image quality and color performance.
Summary: Common cathode has clear advantages in energy saving, low temperature, and color accuracy, but power supply and repair costs are slightly higher and construction requirements are stricter. Common anode is simple, reliable, and easy to maintain, but long-term electricity cost is high and heat generation is significant. The difference between the two is far more than just heat and must be considered comprehensively.
