Is color a concern during the aging of LED displays?

2 views admin 2025-09-11

Is color a concern during the aging test of LED displays? This not only affects the display's color accuracy upon shipment but also directly determines its stability, consistency, and lifespan after long-term use. One of the core goals of aging testing is to simulate long-term wear and tear to identify potential color-related issues (such as color shift, uneven brightness decay, and dead LEDs) in advance, and to achieve stable three-color display performance through calibration.

1. Why is "color" central to aging testing?

The color rendering of LED displays relies on the coordinated illumination of red (R), green (G), and blue (B) LEDs. Different LEDs have fundamentally different physical properties, decay rates, and temperature sensitivities. This is the underlying logic behind this "color concern."

1. Differences in Materials and Luminous Efficiency Red and green light sources are typically made of GaP (gallium phosphide) or GaAlAs (gallium aluminum arsenide), while blue light sources use InGaN (indium gallium nitride). Differences in luminous efficiency and quantum well structure lead to different decay rates—generally, green light decays fastest, blue light decays second fastest, and red light decays the slowest.

2. Inherent Defects in Color Consistency Even within the same batch of LEDs, subtle variations in epitaxial wafer growth, chip cutting, and packaging processes can lead to variations in color coordinates (x,y values) and brightness. Without burn-in screening and calibration, problems such as "color spots" and "color casts" can occur after long-term use.

II. Specific Manifestations of "Color Focus" in Burn-in Testing 1. Burn-in Mode Selection: Designed for Three-Color Characteristics Burn-in testing is not simply "lighting up the screen." Instead, different modes must be selected based on the testing purpose, focusing on "three-color independent verification" and "full-color coordinated verification."

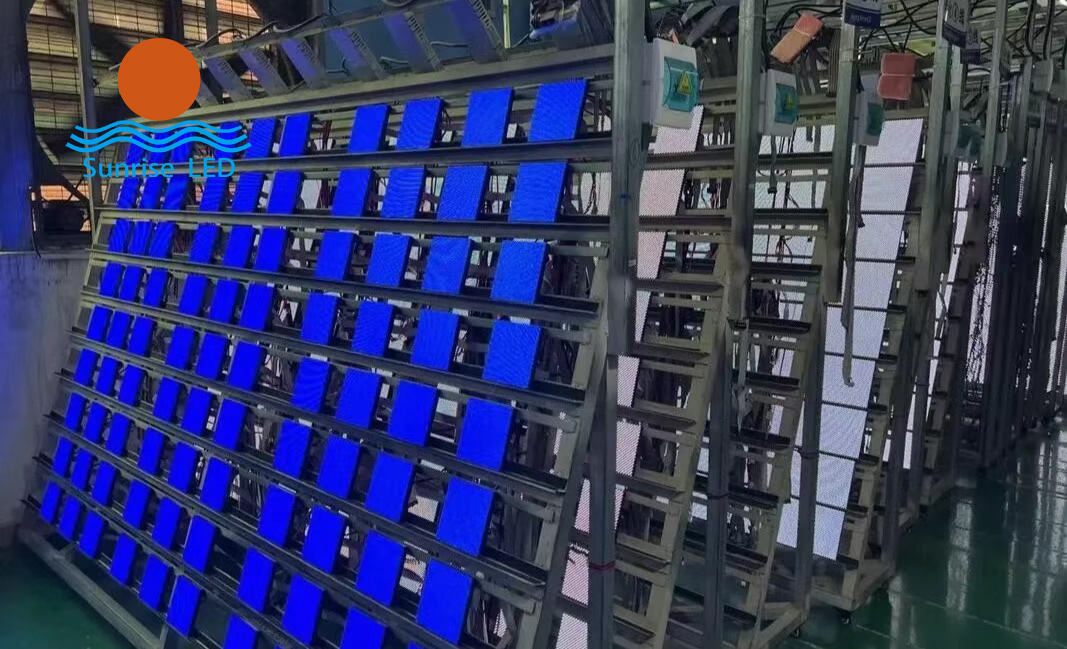

Single-color burn-in (R/G/B individual burn-in) This test is designed to independently test the stability of the red, green, and blue LEDs, screening out premature failures (e.g., dead, dim, or flickering). If a specific LED has packaging defects (e.g., open solder joints or uneven phosphor coating), these defects will be first exposed under high-load burn-in. For example, if the phosphor in a green LED falls off, single-color burn-in will result in a sudden drop in brightness. Key indicators are single-color brightness decay (≤5% after 24-72 hours of burn-in) and the absence of dead or dim lamps.

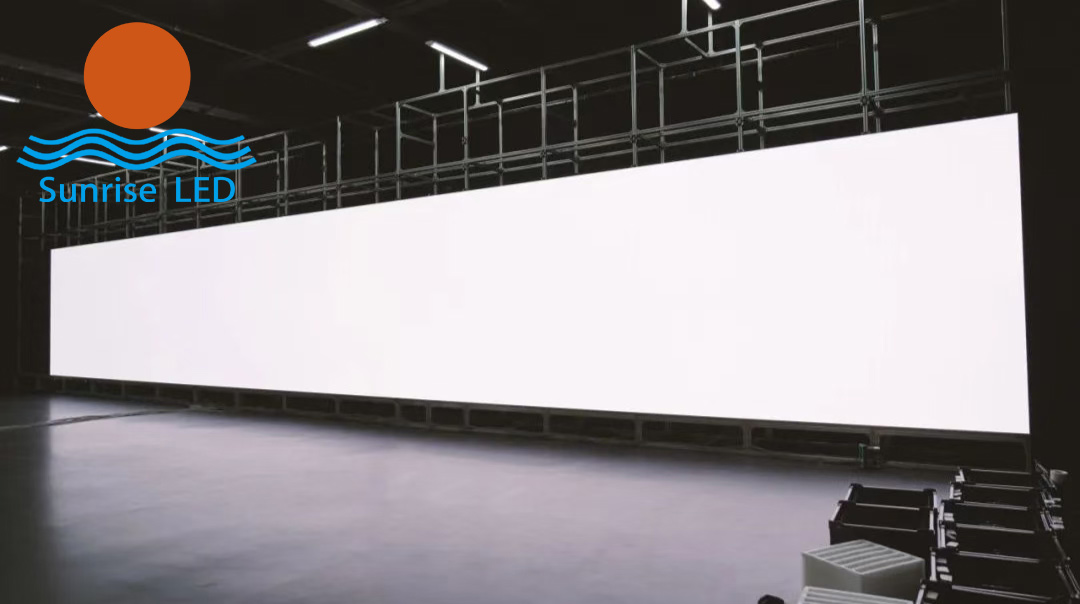

Full-color burn-in (white balance/color gradation burn-in) This test simulates actual usage scenarios and verifies the color accuracy stability and uniformity of the three-color blend. By setting a standard white balance (e.g., 6500K or 9300K) or displaying a full color spectrum, the color consistency across the entire screen can be observed. If the decay of the three colors differs significantly in a particular area, reddish, greenish, or bluish color spots will appear. Key indicators include white balance offset (color coordinate deviation ≤ ±0.015) and full-screen color uniformity ≥90%.

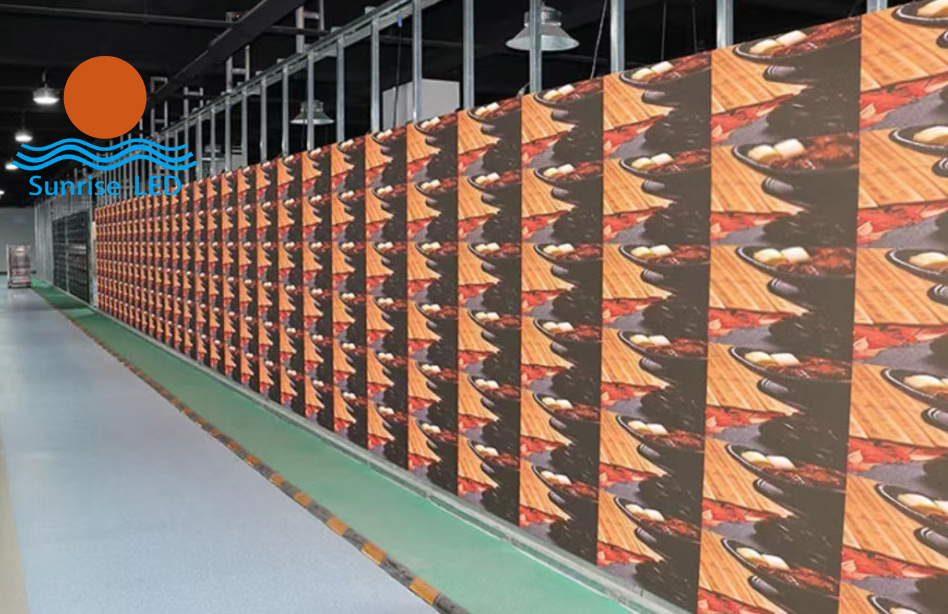

Dynamic Color Burn-in (for video/image playback) The purpose is to test the response stability of the LEDs under "bright-dark switching" and "color abrupt changes" to avoid "smearing and color cast" during actual playback.

2. Color Parameter Monitoring and Calibration Core color parameters must be monitored in real time during the burn-in process. After burn-in, calibration must be performed using specialized equipment (such as a spectrometer or color analyzer) to ensure that color accuracy meets standards.

Color Coordinates (x, y) Color coordinates describe the position of a color on the CIE color spectrum. After burn-in, point-by-point/area-by-area calibration is required to ensure that the x, y values of the same color are within the allowable range (e.g., ±0.005) to avoid "same color, different hues."

Luminance Decay Luminance Decay refers to the ratio of brightness before and after burn-in. The decay rates of the R, G, and B colors must be calculated separately, and the driving currents adjusted to balance the brightness of the three colors (for example, if green decays faster, its driving current should be increased appropriately).

Color Temperature Stability Color temperature stability refers to the color temperature deviation under white balance. After aging, the color temperature deviation must be ≤ ±200K (for example, a standard 6500K should be between 6300-6700K after aging) to avoid a "warm" or "cold" screen.

Color Uniformity Color uniformity refers to the difference in brightness/color coordinates within the same color area across the entire screen. After aging, gamma correction and white balance calibration are required to eliminate local color differences and ensure no noticeable "color blocks" when viewing.

3. Application Scenario Determines the Priority of Color aging The color aging requirements for displays vary greatly depending on the application.

Large Outdoor Screens (such as Advertising Screens and Stadium Screens)

The core requirements are heat and UV resistance, and color stability under strong light. Aging should be performed in a high-temperature environmental chamber (40-60°C), focusing on testing the attenuation of blue light emitting diodes (which are most sensitive to high temperatures) to avoid an overall reddish cast during outdoor use.

Indoor high-definition screens (such as conference screens and cinema screens) The core requirement is high color accuracy and no visible color difference. During burn-in, a long-term burn-in at low brightness (simulating indoor brightness) is required, focusing on calibrating color coordinates and uniformity to ensure faithful color reproduction when playing images/videos.

Spliced screens (such as those in monitoring centers and command centers) The core requirement is consistent color at the seams, without "discontinuities." During burn-in, the tiled units must be burned-in simultaneously, and the color coordinate deviation between units must be tested (required to be ≤±0.003) to avoid "stripes of green/stripes of red" after splicing. 4. The Relationship between Burn-in Time and Color Attenuation The decay curve of LED lamp beads follows a "fast-to-slow" pattern (decaying by approximately 10-15% in the first 1000 hours, followed by a plateau). Therefore, the burn-in time must cover the "rapid decay period" to accurately predict long-term color stability.

Factory basic aging: 24-72 hours, used to screen for premature lamp failure and perform preliminary color calibration. High-end screen enhanced aging: 100-200 hours, simulating 1-2 years of wear and tear to ensure long-term color stability. Military/medical screens: 500 hours or more, used to verify color reliability in extreme environments.Is color a concern during the aging of LED displays?Is color a concern during the aging test of LED displays? This not only affects the display's color accuracy upon shipment but also directly determines its stability, consistency, and lifespan after long-term use. One of the core goals of aging testing is to simulate long-term wear and tear to identify potential color-related issues (such as color shift, uneven brightness decay, and dead LEDs) in advance, and to achieve stable three-color display performance through calibration.1. Why is "color" central to aging testing? The color rendering of LED displays relies on the coordinated illumination of red (R), green (G), and blue (B) LEDs. Different LEDs have fundamentally different physical properties, decay rates, and temperature sensitivities. This is the underlying logic behind this "color concern." 1. Differences in Materials and Luminous Efficiency Red and green light sources are typically made of GaP (gallium phosphide) or GaAlAs (gallium aluminum arsenide), while blue light sources use InGaN (indium gallium nitride). Differences in luminous efficiency and quantum well structure lead to different decay rates—generally, green light decays fastest, blue light decays second fastest, and red light decays the slowest. 2. Inherent Defects in Color Consistency Even within the same batch of LEDs, subtle variations in epitaxial wafer growth, chip cutting, and packaging processes can lead to variations in color coordinates (x,y values) and brightness. Without burn-in screening and calibration, problems such as "color spots" and "color casts" can occur after long-term use. II. Specific Manifestations of "Color Focus" in Burn-in Testing 1. Burn-in Mode Selection: Designed for Three-Color Characteristics Burn-in testing is not simply "lighting up the screen." Instead, different modes must be selected based on the testing purpose, focusing on "three-color independent verification" and "full-color coordinated verification." Single-color burn-in (R/G/B individual burn-in) This test is designed to independently test the stability of the red, green, and blue LEDs, screening out premature failures (e.g., dead, dim, or flickering). If a specific LED has packaging defects (e.g., open solder joints or uneven phosphor coating), these defects will be first exposed under high-load burn-in. For example, if the phosphor in a green LED falls off, single-color burn-in will result in a sudden drop in brightness. Key indicators are single-color brightness decay (≤5% after 24-72 hours of burn-in) and the absence of dead or dim lamps. Full-color burn-in (white balance/color gradation burn-in) This test simulates actual usage scenarios and verifies the color accuracy stability and uniformity of the three-color blend. By setting a standard white balance (e.g., 6500K or 9300K) or displaying a full color spectrum, the color consistency across the entire screen can be observed. If the decay of the three colors differs significantly in a particular area, reddish, greenish, or bluish color spots will appear. Key indicators include white balance offset (color coordinate deviation ≤ ±0.015) and full-screen color uniformity ≥90%.
Dynamic Color Burn-in (for video/image playback) The purpose is to test the response stability of the LEDs under "bright-dark switching" and "color abrupt changes" to avoid "smearing and color cast" during actual playback.2. Color Parameter Monitoring and Calibration Core color parameters must be monitored in real time during the burn-in process. After burn-in, calibration must be performed using specialized equipment (such as a spectrometer or color analyzer) to ensure that color accuracy meets standards. Color Coordinates (x, y) Color coordinates describe the position of a color on the CIE color spectrum. After burn-in, point-by-point/area-by-area calibration is required to ensure that the x, y values of the same color are within the allowable range (e.g., ±0.005) to avoid "same color, different hues." Luminance Decay Luminance Decay refers to the ratio of brightness before and after burn-in. The decay rates of the R, G, and B colors must be calculated separately, and the driving currents adjusted to balance the brightness of the three colors (for example, if green decays faster, its driving current should be increased appropriately). Color Temperature Stability Color temperature stability refers to the color temperature deviation under white balance. After aging, the color temperature deviation must be ≤ ±200K (for example, a standard 6500K should be between 6300-6700K after aging) to avoid a "warm" or "cold" screen. Color Uniformity Color uniformity refers to the difference in brightness/color coordinates within the same color area across the entire screen. After aging, gamma correction and white balance calibration are required to eliminate local color differences and ensure no noticeable "color blocks" when viewing. 3. Application Scenario Determines the Priority of Color aging The color aging requirements for displays vary greatly depending on the application. Large Outdoor Screens (such as Advertising Screens and Stadium Screens) The core requirements are heat and UV resistance, and color stability under strong light. Aging should be performed in a high-temperature environmental chamber (40-60°C), focusing on testing the attenuation of blue light emitting diodes (which are most sensitive to high temperatures) to avoid an overall reddish cast during outdoor use. Indoor high-definition screens (such as conference screens and cinema screens) The core requirement is high color accuracy and no visible color difference. During burn-in, a long-term burn-in at low brightness (simulating indoor brightness) is required, focusing on calibrating color coordinates and uniformity to ensure faithful color reproduction when playing images/videos. Spliced screens (such as those in monitoring centers and command centers) The core requirement is consistent color at the seams, without "discontinuities." During burn-in, the tiled units must be burned-in simultaneously, and the color coordinate deviation between units must be tested (required to be ≤±0.003) to avoid "stripes of green/stripes of red" after splicing.
4. The Relationship between Burn-in Time and Color Attenuation The decay curve of LED lamp beads follows a "fast-to-slow" pattern (decaying by approximately 10-15% in the first 1000 hours, followed by a plateau). Therefore, the burn-in time must cover the "rapid decay period" to accurately predict long-term color stability.Factory basic aging: 24-72 hours, used to screen for premature lamp failure and perform preliminary color calibration. High-end screen enhanced aging: 100-200 hours, simulating 1-2 years of wear and tear to ensure long-term color stability. Military/medical screens: 500 hours or more, used to verify color reliability in extreme environments.
III. Consequences of Ignoring "Color Care"Failure to pay attention to color factors during aging testing can lead to the following display issues during use: 1. Short-term Issues: Color cast, localized color spots, and white balance imbalances can occur right from the factory, directly impacting the viewing experience. 2. Long-term Issues: After 3-6 months of use, the difference in attenuation between the three colors increases, resulting in a "red" or "green" screen, or even premature lamp failure in certain areas. 3. Cost Waste: Lamp replacement is required for subsequent repairs, which is extremely costly (especially for fine-pitch screens). IV. Summary The "color considerations" in LED display aging essentially address the physical differences between the three-color LEDs. Through precise pattern design, parameter monitoring, and calibration, color defects are proactively eliminated, ensuring color stability and consistency over long-term use. Whether for quality control at the production end or during user selection and evaluation, attention to "color aging standards" is a core indicator for evaluating display quality. For example, reputable manufacturers will provide color coordinate reports and brightness decay curves after aging, rather than simply stating "72 hours of aging."
