Differences Between Mini LED Backlight and Mini LED Direct Display

7 views admin 2026-01-22

The core difference between Mini LED backlight and Mini LED direct display lies in this: the former is an upgraded solution for LCD (non-self-illuminating), while the latter is a self-illuminating display technology. The former relies on the liquid crystal layer and color filter for imaging, whereas the latter uses RGB Mini LED chips directly as light-emitting pixels. They differ significantly in terms of principle, structure and application.

Technical Principles

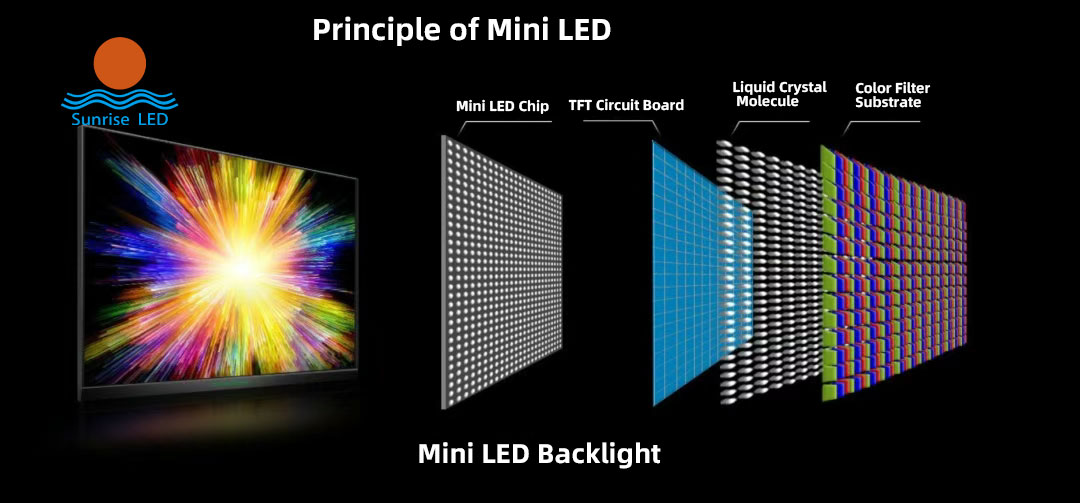

It is essentially still a liquid crystal display technology, which uses Mini LED chips as the backlight source to provide uniform light for the liquid crystal panel. Liquid crystal molecules adjust their orientation under electric field control to regulate light transmittance, and then form color images through color filters. Mini LED Direct Display

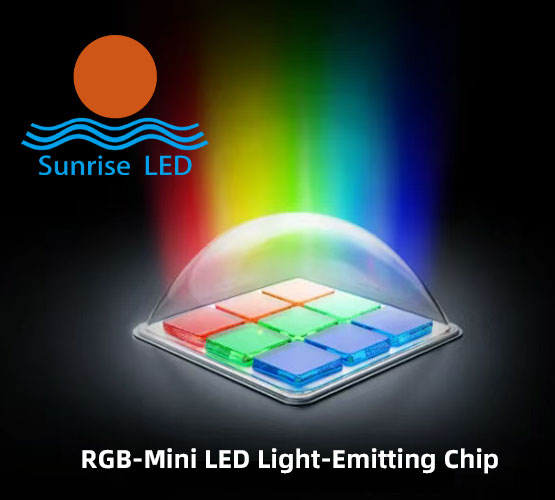

It uses Mini LED chips directly as pixel points. Each chip can independently emit light and change color without the need for a liquid crystal layer or color filter. Images are displayed directly by controlling the brightness and color of the chips. Structural Composition

It consists of multiple layers including the Mini LED backlight layer, liquid crystal layer, color filter and polarizer, with a relatively complex structure. Mini LED Direct Display

It is mainly composed of a Mini LED chip array and driving circuits, featuring a simple structure without liquid crystal layers or color filters. Size and Form Factor

Restricted by liquid crystal panel manufacturing processes, its size is usually within tens of inches, with a maximum of around 100 inches. It is difficult to achieve ultra-large sizes or special form factors (such as curved or transparent displays). Mini LED Direct Display

It can achieve ultra-large sizes (hundreds or even thousands of inches) through splicing, and can flexibly adapt to the requirements of special form factors like curved and transparent displays.

Response Speed

Liquid crystal molecules have a relatively slow response speed (on the millisecond level), which may cause motion blur when displaying fast-moving images. Mini LED Direct Display

The chips have an extremely fast response speed (on the nanosecond level), capable of instantaneously switching brightness and color, making them suitable for high-refresh-rate scenarios such as gaming and sports events broadcasting. Service Life and Stability

The liquid crystal layer in the multi-layer structure is prone to aging and yellowing over time. The backlight uniformity may decrease with prolonged use, resulting in a relatively shorter overall service life.

With a simple structure, it avoids the aging issue of the liquid crystal layer. Its service life can reach more than 100,000 hours, offering higher stability. Cost and Price

Boasting mature technology and relatively simple production processes, it has lower costs and more affordable product prices, making it suitable for the mass market. Mini LED Direct Display Characterized by complex manufacturing processes and large chip usage, it has higher costs and is usually more expensive, mostly applied in high-end scenarios.

Application Scenarios

It is widely used in daily consumer electronic products such as TVs, monitors, laptops and vehicle displays, focusing on cost-effectiveness and practicality. Mini LED Direct Display It is mainly used in high-end scenarios with stringent requirements for image quality, size and form factor, including premium cinemas, large-scale advertising screens, virtual production and special-form displays (e.g., transparent screens and curved screens).
