The Difference Between Front-End and Rear-End Maintenance of LED Displays

3 views admin 2025-08-21

Front-end and rear-end maintenance of LED displays are two different maintenance/replacement methods. The key difference lies in the direction of maintenance (front/rear). They are suitable for different scenarios and have their own advantages and disadvantages. Below is a detailed comparison:

Maintenance operations (such as replacing modules, power supplies, driver boards, etc.) are performed from the front (viewing side) of the display, without accessing the back. Rear-end Maintenance: Maintenance operations are performed from the back (non-viewing side) of the display, requiring access to internal components through the space behind the display.

2. Applicable Scenarios: Front-end maintenance is applicable in the following scenarios:

Space-constrained installation environments: Such as wall-mounted installations (with the back facing the wall) and confined indoor spaces (such as elevator entrances and hallways). Fine-pitch LED displays: Due to their dense pixel density and compact modules, there is insufficient back-end space, making front-end maintenance more convenient. Rental/Temporary Displays: For applications requiring rapid assembly and disassembly and frequent movement (such as stage rental displays), the quick-release mechanism of front-end maintenance improves efficiency.

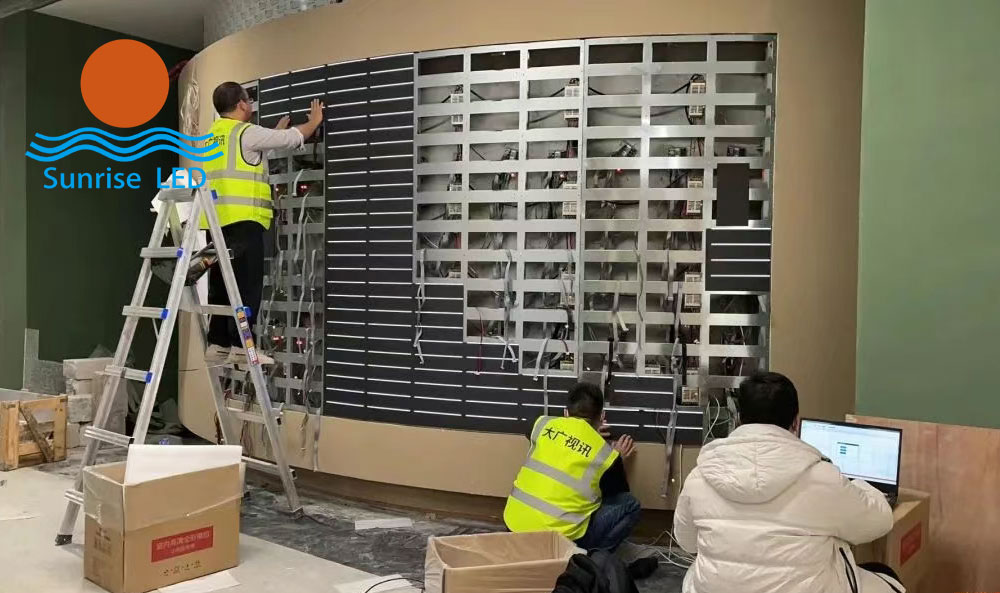

Structural Design Differences: Front-Access Design: The module is secured with magnets or spring clips and can be removed directly from the front. The power supply/driver board is installed via a retractable bracket on the front, eliminating the need to disassemble the display. Rear-Access Design: The module is secured to the back of the display with screws, allowing for easy removal for maintenance. The back of the display typically features an openable panel or access hatch for convenient access to internal components.

If the installation space is limited (such as a wall or elevator entrance), front-access design is preferred.

If there is ample back space (such as on outdoor columns or in stadiums) and frequent maintenance is required, rear-access design is preferred.

For applications such as fine-pitch displays and rental displays, front-access design is the preferred solution. For large outdoor displays and cabinet displays, rear-access design is more practical.

The key to both approaches is matching the installation environment with the intended use. Front-access design prioritizes space conservation, while rear-access design emphasizes ease of use.
