Complete Classification of LED Transparent Screens by Structure & Form

4 views admin 2026-02-26

Thanks to their core advantages of clear imaging + high transparency, LED transparent screens have been increasingly widely used. However, different structural types of LED transparent screens vary significantly in installation method and application scenarios, which often causes confusion. This article explains the core features and suitable applications of each type in plain language for quick understanding.
I. Rigid LED Transparent Screens (Fixed Shape, Non‑bendable)
Features: Sturdy structure, suitable for long‑term fixed installation, such as outdoor facades and fixed areas in exhibition halls.

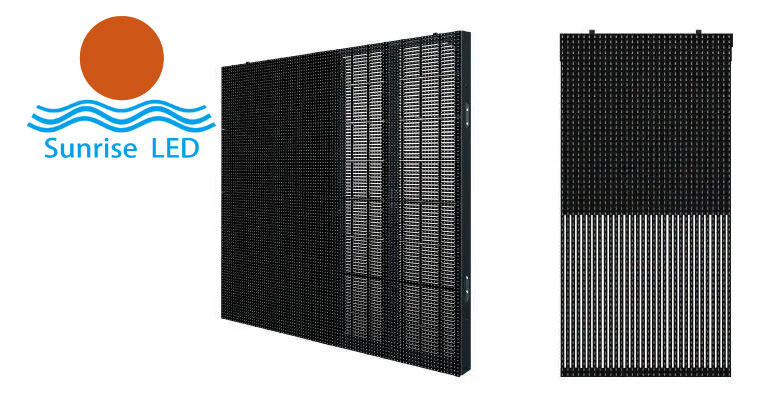

1. Grid LED Screen / Mesh LED Screen / Strip Curtain Screen
Structure: Rigid LED strips + aluminum alloy frame, arranged in a grid pattern with hollow gaps and no back panel.
Advantages: Wind‑resistant, waterproof, widely used outdoors.
Typical Applications: Shopping mall facades, stage canopies, outdoor cultural tourism displays.

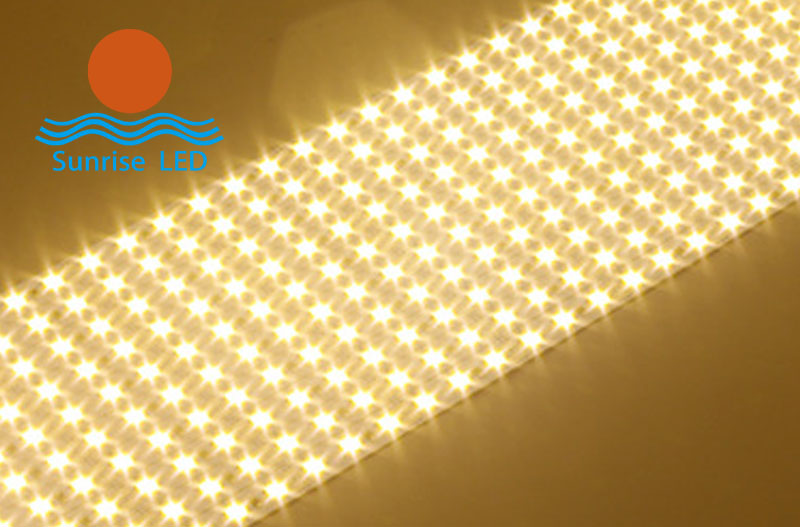

2. Rigid Strip LED Transparent Screen (Front‑emitting / Side‑emitting)
Structure: Rigid PCB LED strips, with LEDs emitting light either from the front (front‑emitting) or from the side (side‑emitting).
Advantages: Wide viewing angle (front‑emitting) or higher visual transparency (side‑emitting).
Typical Applications: Indoor store windows, exhibition halls, office building lobbies.
II. Flexible LED Transparent Screens (Bendable, Rollable, Stickable)
Features: Ultra‑thin and lightweight, bendable and foldable, flexible installation, ideal for irregular shapes or temporary setups.

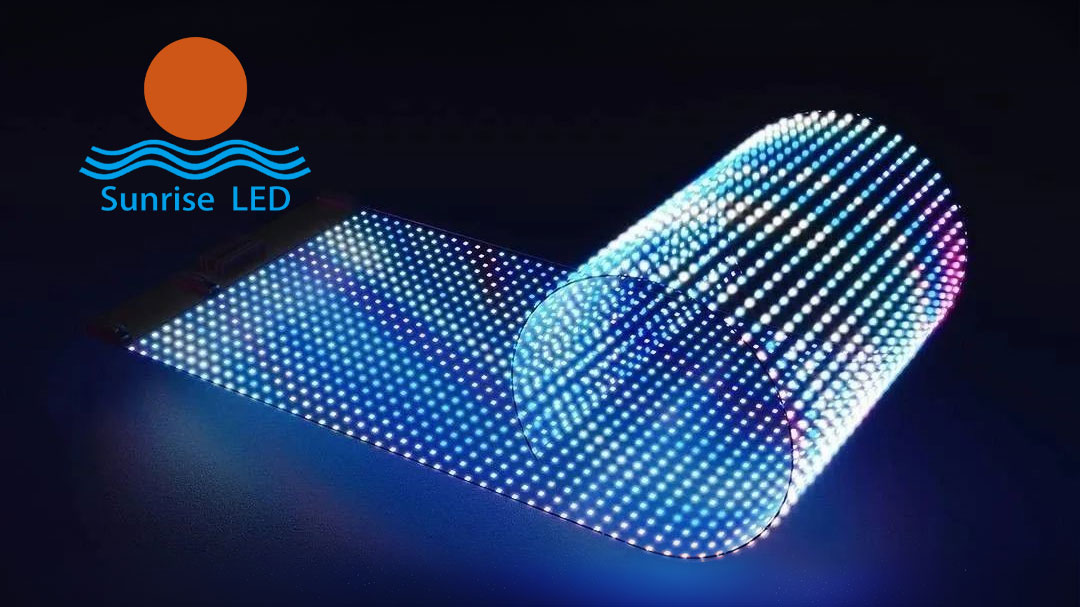

1. Film LED Screen / Thin‑film Transparent Screen
Structure: Resembles a transparent plastic film with LEDs attached, can be directly adhered to glass or walls.
Advantages: Easy installation, thin (1–3 mm) and lightweight.
Typical Applications: Storefront windows, elevator glass, temporary exhibitions.
2. Crystal Film Screen / Bare‑die Transparent Screen
Structure: Thinner than film screens (≤ 0.5 mm), with bare LED chips directly mounted on the film, rollable for storage.
Advantages: Nearly invisible (looks like normal glass when off), extremely high transparency.
Typical Applications: High‑end exhibition halls, art installations, luxury stores.

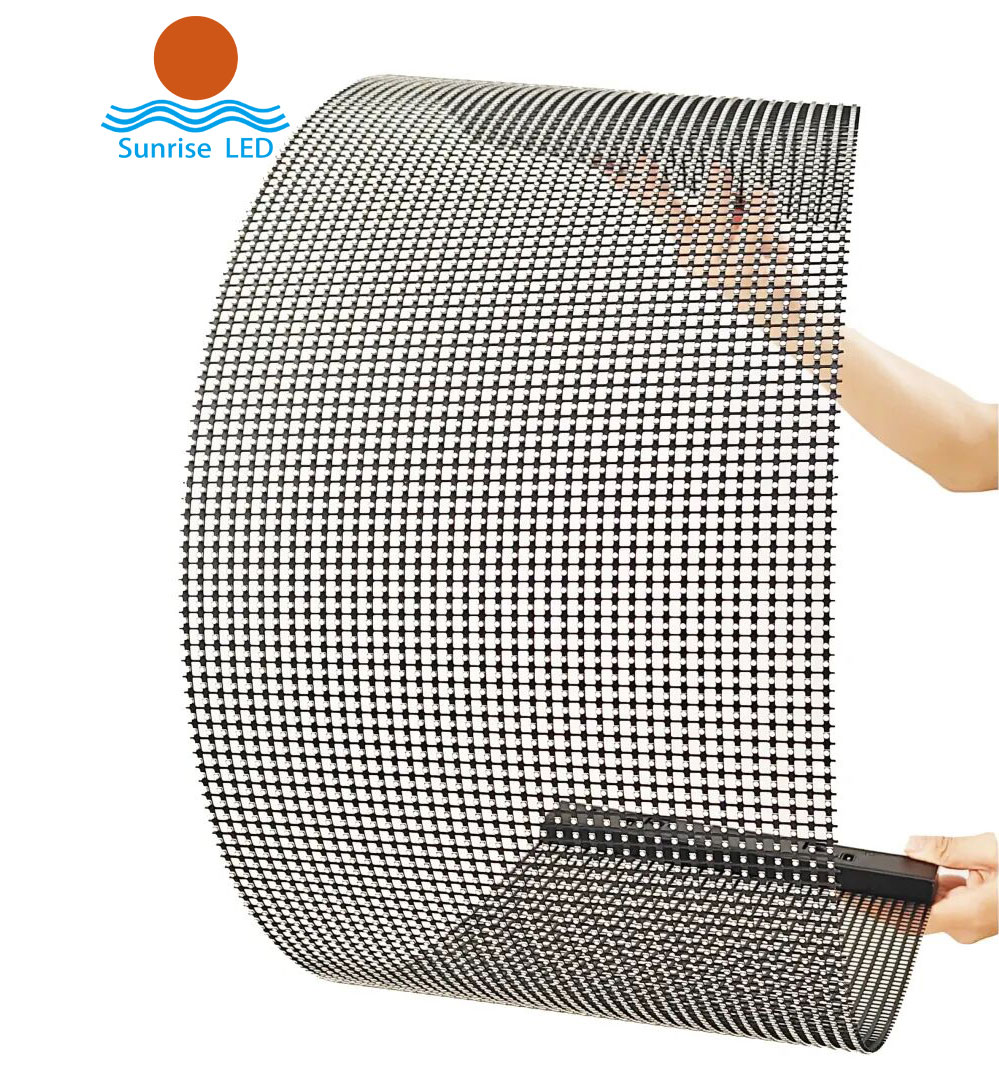

3. Flexible Mesh LED Screen
Structure: Flexible soft film + LED dots, arranged in a grid, can be hung or curved.
Advantages: Ultra‑lightweight, supports large‑size and irregular shapes.
Typical Applications: Outdoor cultural tourism light shows, stage backgrounds.
III. Glass‑Integrated LED Transparent Screens (Integrated with Glass)
Features: Function as both transparent displays and architectural glass, suitable for new buildings or glass renovation.

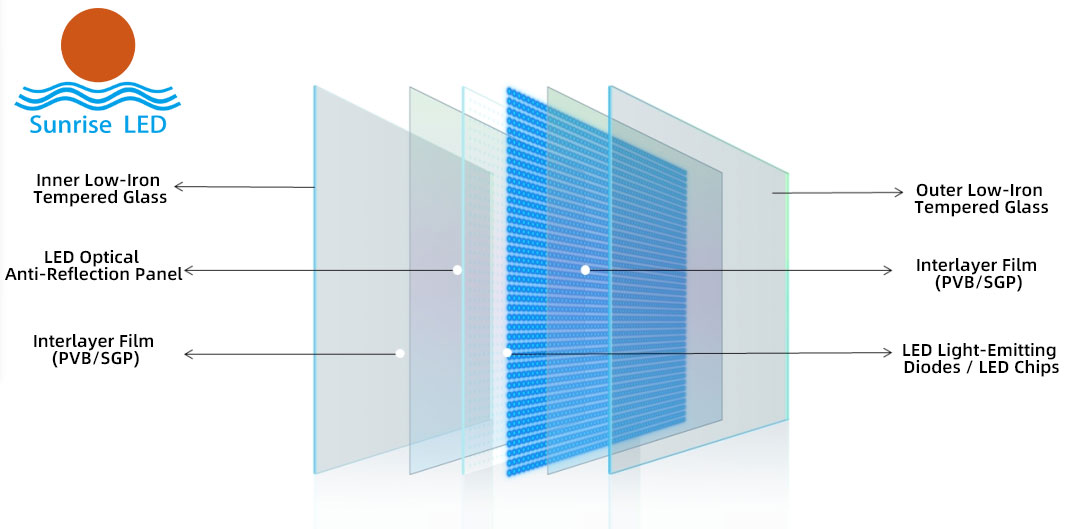

1. Laminated Photovoltaic Glass LED Screen
Structure: LED circuits sealed between two layers of tempered glass, bonded into a single glass panel.
Advantages: Safe and shatterproof, can directly replace windows and curtain wall glass.
Typical Applications: Office building curtain walls, shopping mall skylights, glass partitions.
2. Surface‑Mounted Photovoltaic Glass
Structure: LED film directly attached to the surface of existing glass without replacement.
Advantages: Easy retrofitting, no damage to original glass.
Typical Applications: Glass upgrading for old buildings, store window renovation.
IV. Special Derivative Types
Dual‑sided LED Transparent Screen: Displays content on both sides, ideal for glass partitions.
COB Packaged LED Transparent Screen: More robust LED packaging, waterproof and dustproof, suitable for humid outdoor environments.
Micro/Mini LED Transparent Screen: Higher definition, designed for high‑resolution display requirements.
Conclusion
Different structural types of LED transparent screens serve different scenarios. The key differences lie in installation flexibility, whether they double as building materials, and special functional requirements. When selecting, you can match the appropriate type based on your scenario: outdoor/indoor, fixed/temporary installation, new construction/renovation.
