Common LED Display Chip Failures

94 views admin 2025-08-29

1. Driver Failure (No Lighting or Abnormal Brightness) Symptoms: Some or all LEDs fail to illuminate, the brightness is insufficient, or the brightness of individual LEDs or areas flickers. Causes: Damage to the chip's internal driver circuit (e.g., MOSFET breakdown), preventing it from outputting normal current; a poor solder joint or disconnection in the chip pins, resulting in interrupted drive signals; or a mismatch between the drive current parameters and the LEDs (e.g., overcurrent protection triggering). 2. Grayscale and Color Distortion: Displayed colors may be distorted, grayscale gradations may be lost (e.g., low grayscale values appear dark, high grayscale values appear overexposed), or adjacent areas may exhibit significant color differences. Causes: Inadequate accuracy of the chip's grayscale processing circuit (e.g., PWM duty cycle control errors); poor color temperature and wavelength matching between the chip and the LEDs; or grayscale data loss or interference during signal transmission.

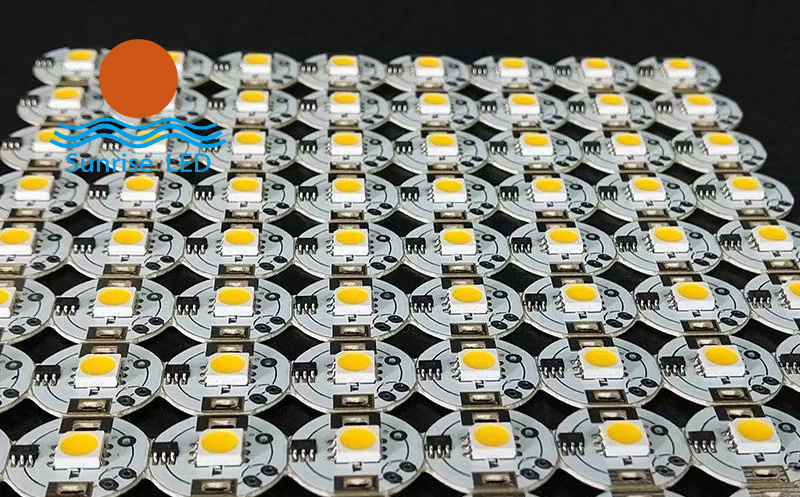

II. Physical and Electrical Damage
1. Electrostatic Discharge (ESD) Damage: Symptoms of sudden chip failure, no output signal, or permanent failure of certain LEDs. Cause: LED chips are electrostatically sensitive components (mostly Class 1A/1B ESD rating). Failure to properly implement ESD protection measures during production, soldering, and installation (such as ungrounded components or use of non-ESD tools) can cause sudden high-voltage static electricity to break down the chip's internal semiconductor structure. 2. Overvoltage/Overcurrent Burnout: Symptoms of chip overheating, blackened oxidized pins, and even a burning smell. LEDs in the corresponding area completely fail. Causes: Power supply voltage fluctuations (such as surges or surges) exceeding the chip's withstand voltage (typically 5-30V, depending on the model); driver circuit design flaws (such as a faulty current-limiting resistor) causing current to exceed the chip's maximum rating (typically 10-60mA); or external short circuits (such as shorted LEDs) triggering failure of the chip's overcurrent protection.

1. Overheating: The chip's temperature rises suddenly during operation, causing the display to flicker, freeze, or even automatically go black for protection. Causes: Inadequate display heat dissipation design (e.g., undersized heat sink, fan failure), prolonged chip operation in a high-temperature environment (exceeding the rated junction temperature, typically 85-125°C), excessive chip power density (e.g., a small chip driving high-brightness LEDs), insufficient heat dissipation capacity. 2. Moisture and Corrosion Symptoms: Oxidation of chip pins and rusting of solder joints lead to poor contact and intermittent display performance; in severe cases, internal chip short circuits. Causes: Outdoor or high-humidity environments (e.g., rainy season in southern China), insufficient protection level (below IP65), moisture seeping into the PCB, corroding chip pins (mostly gold/tin-plated); dust accumulation and moisture absorption, exacerbating electrochemical corrosion.

1. Abnormal Signal Transmission Symptoms: Screen distortion, misalignment, ghosting, or failure to receive control signals (no display on the entire screen). Causes: The chip's signal interface (such as LVDS or SPI) has weak anti-interference capabilities and is susceptible to external electromagnetic interference (such as from motors and transformers); the signal transmission distance is too long (exceeding the chip's maximum supported transmission distance, typically 5-10 meters), resulting in signal attenuation; and improper PCB layout (such as running signal lines parallel to power lines) causes crosstalk. 2. Compatibility Failure: Symptoms: The chip, control card, and power supply are incompatible, resulting in a failure to boot properly or frequent restarts during operation. Cause: The chip's communication protocol (such as gamma correction and refresh rate parameters) is incompatible with the control card; the power supply output voltage ripple is excessive, exceeding the chip's tolerance range (typically ≤ 100mV).

Problems with LED display chips are often related to electrical stress (electrostatic discharge, overvoltage, and overcurrent), environmental stress (temperature and humidity), and design compatibility (driver parameters and signal compatibility). Solutions must address the root cause: select chips with high ESD ratings and wide temperature ranges, optimize heat dissipation and protection designs, standardize production and installation processes (anti-static and prevent solder joints), and ensure parameter compatibility with upstream and downstream components (LEDs and control cards).
