| Name | Project | HB-X2.5 | HB-X1.86 | HB-X1.53 | HB-X1.25 |
| Display module parameters |
Pixel spacing | 2.5mm | 1.86mm | 1.538mm | 1.25mm |
| Pixel construction | Surface Mount Triple LED | ||||
| Resolution ratio | 128*(h) 64 points | 172*(h)86points | 204*(h)104points | 256*(h)128points | |
| Module Size | (w)320*(h)160mm | ||||

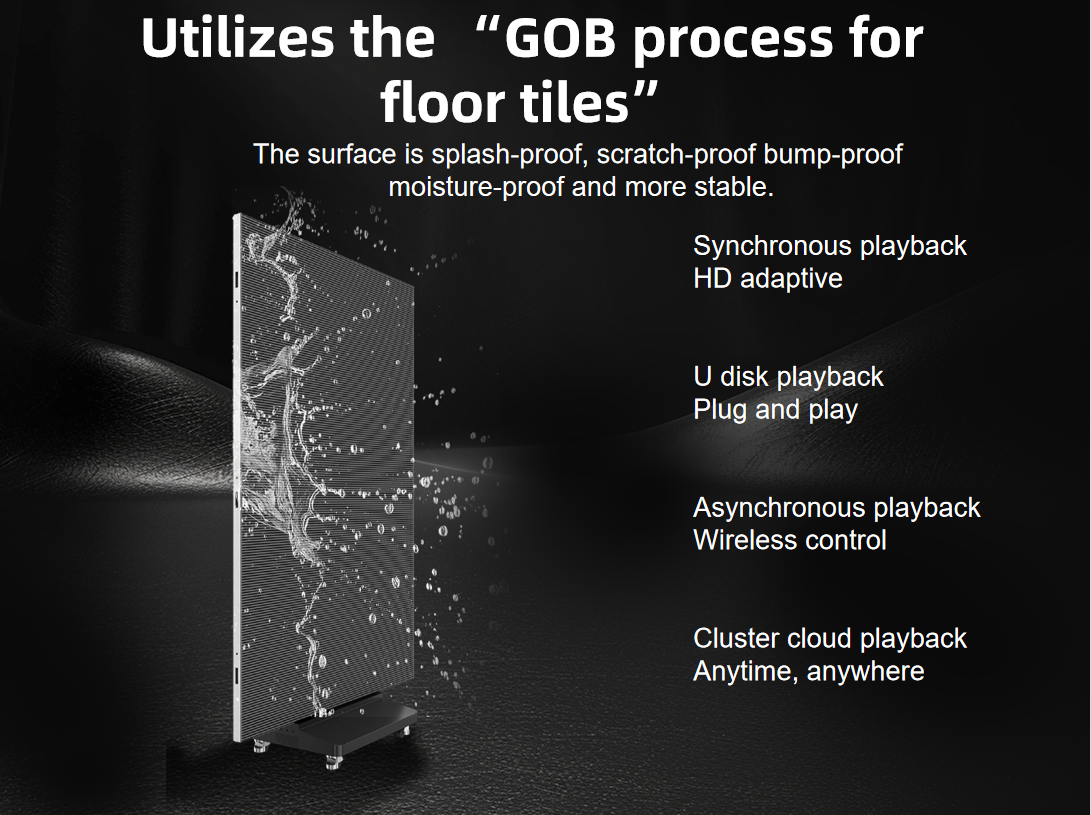

| Protective technology | GOB | ||||
| Module weight | 0.55kg | ||||
| Whole machine composition |
Whole machine module composition W*H | (w)2*(H)12 sheets | |||
| Single sided display resolution W * H | (w)512*（H）768px | (w)688*（H）1032px | (w)832*（H）1248px | (w)1024*（H）1536px | |
| Dual sided display resolution W * H | (w)256*（H）768px | (w)344*（H）1032px | (w)344*（H）1032px | (w)512*（H）1536px | |
| Single sided display size | 1280*1920mm | ||||
| Double sided display size | 640*1920mm | ||||
| Single sided appearance dimensions | 1280*2070mm | ||||
| Double sided appearance dimensions | 640*2070mm | ||||
| Gross weight of the machine | 78kg | ||||
| Optical parameters |
Flatness tolerance | 0.5mm | |||
| White balanced brightness | 600CD | ||||
| Gray scale | 14-16BT Adjustable | ||||
| Color temperature | 3200-9000 adjustable | ||||
| Best visual distance | 3-20M | ||||
| Perspective (horizontal) | 160° | ||||
| Perspective (vertical) | 160° | ||||
| Tolerance of center to center distance of luminous point |
≤3% | ||||
| Luminance uniformity | ≥95 | ||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | ||||
| Contrast ratio | 8000:1 | ||||
| Power on requirements |
Power supply requirements | 100-240V | |||
| Peak power consumption | 850W | 900W | 1200W | 1600W | |
| Average Power | 220W | 300W | 300W | 565W | |
| Communication parameters |

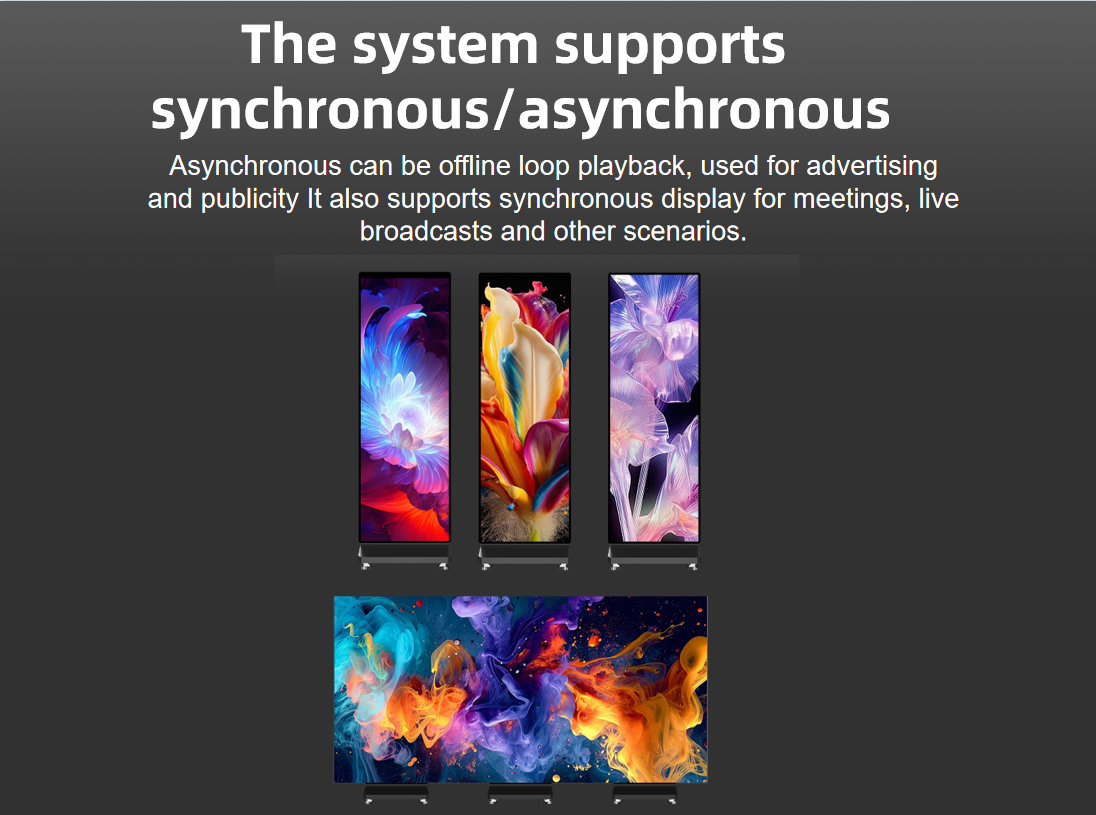

Synchronous/Asynchronous | support | |||
| Communication method | drive/Ethernet port/4G remote | ||||

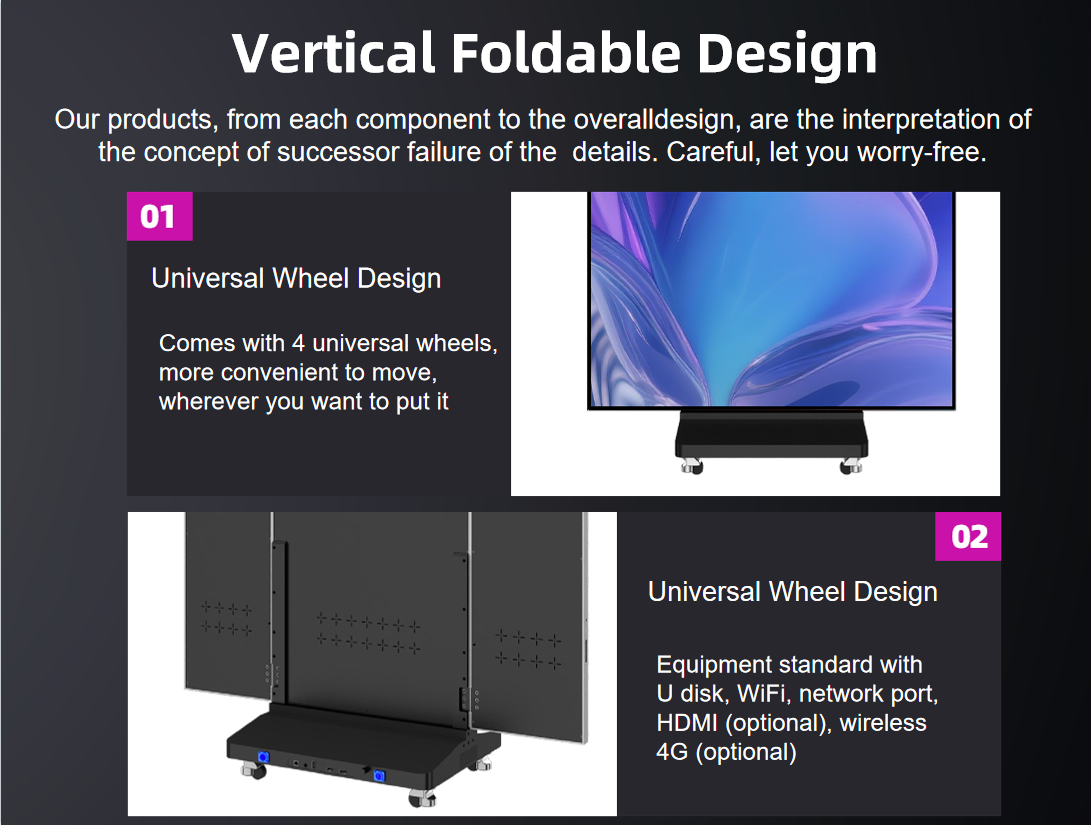

| Interface | JS485*1 WIFI*1 U disk*1 HDMI*2 | ||||
| Speaker | Is there a built-in speaker | 50*12mｍ*2PCS | |||
| Audio | 3.5 Audio Interface/Supports External Amplifier | ||||
| Performance processing |
Drive mode | Constant current drive | |||
| Frame Frequency | 60HZ | ||||
| Refresh rate | ≥3840HZ | ||||
| Using parameters |
Typical lifespan values | 50000H | |||
| Working temperature range | -40—50℃ | ||||
| Operating humidity range | 10-80% No condensation | ||||
| Storage Temperature Range | -50—50RH | ||||
| Storage humidity range | 10-85%RH No condensation | ||||
