MINI PIXEL PITCH LED DISPLAY


Product Specification:

Inquiry Now


Product Description
Model No.
MINI-I0.9
MINI-I1.25
Pixel pitch
0.9375mm
1.25mm
LED Type
IMD-F0.9 4 in 1
SMD 1010
Pixel Density
1137778 pixel/㎡
640000 pixel/㎡
Scan
1/60 scan
1/48 scan
Cabinet Material
Die casting aluminum
Cabinet Dimension (W*H*D)
600mm×337.5mm×38mm
23.6’’×13.3’’×1.5’’
Cabinet Wight
11kg
11kg
Cabinet Resolution
640*360dots
480*270dots
Max power Consumption
≤600w/㎡
≤500w/㎡
Average power Consumption
100~300w/㎡
Brightness
200~800cd/㎡
Viewing Angle
H: 140° V:140°
Refresh Rate
3840Hz
Gray Scale
16bits
High contrast
6000:1
5000:1
IP Rating
IP41
IP41
Operating Temperature
-10℃~ +60 ℃
Lifetime
100,000hrs
FAQ
Q1. Is it your new led cabinet?
It is our own private led cabinet with unparalleled advantages .

Q2. What’s delivery time?
The production can be controlled as fast as you need from 10 days to 25 days.Q3. Can I just wait for the items at my door and no need to do others?

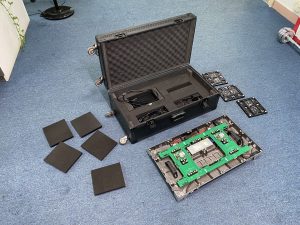

Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.Q4. The display will come to me in parts? and i have to install each part together?
Yes, but it’s quite easy. We will send you the instruction and also we can do Teamviewer to help you to adjust the software,
everything.Q5. What’s the function of video processor?
It can transfer the video source to make the screen performance clearer. Sometimes there is HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.Q6. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be provided.
