Product Parameters
| Name | Project | HB-X2.5 | HB-X1.86 | HB-X1.53 | HB-X1.25 |
| Display module parameters | Pixel spacing | 2.5mm | 1.86mm | 1.538mm | 1.25mm |
| Pixel construction | Surface Mount Triple LED | ||||
| Resolution ratio | 128*(h) 64 points | 172*(h)86points | 204*(h)104points | 256*(h)128points | |
| Module Size | (w)320*(h)160mm | ||||

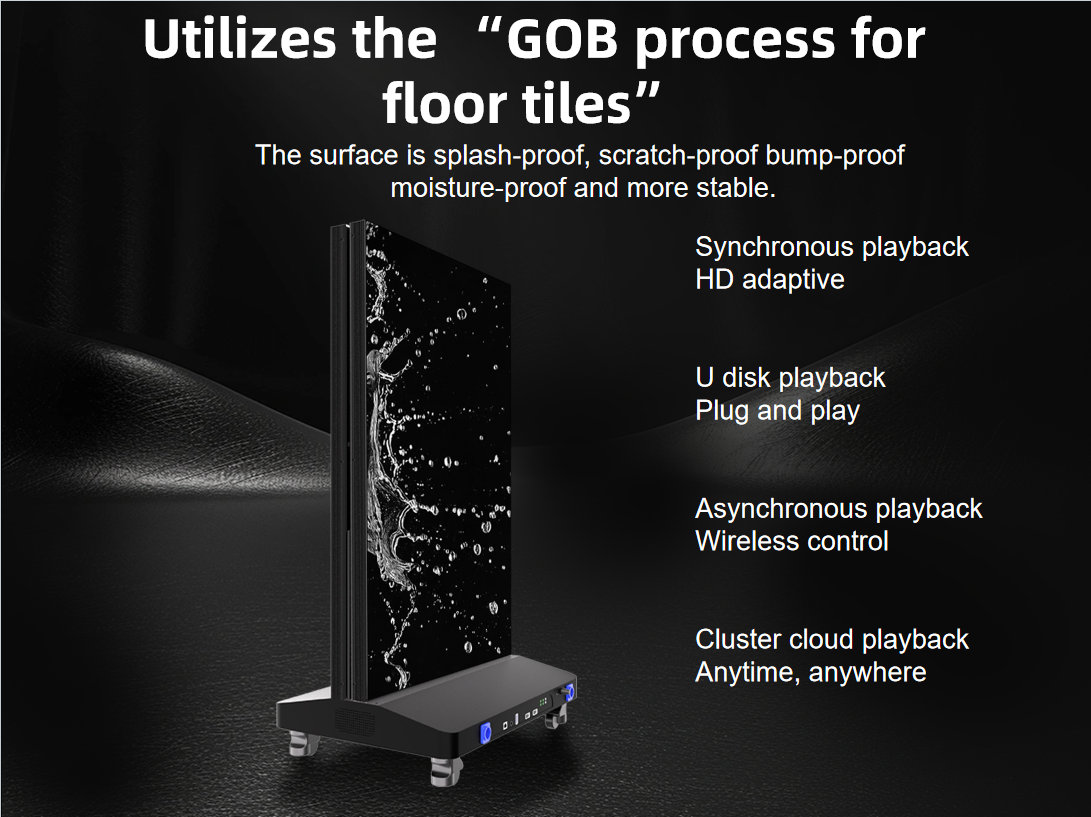

| Protective technology | GOB | ||||
| Module weight | 0.55kg | ||||
| Whole machine composition | Whole machine module composition W*H | (w)2*(H)12 sheets | |||
| Overall resolution W * H | (w)256*（H）768px | (w)344*（H）1032px | (w)416*（H）1248px | (w)512*（H）1536px | |
| Display Size | 640*1920mm | ||||
| Dimension | 646*2050mm | ||||
| Gross weight of the machine | 43kg | ||||
| Optical parameters | Flatness tolerance | 0.5mm | |||
| White balanced brightness | 650CD | ||||
| Gray scale | 14-16BT Adjustable | ||||
| Color temperature | 3200-9000 adjustable | ||||
| Best visual distance | 3-20M | ||||
| Perspective (horizontal) | 160° | ||||
| Perspective (vertical) | 160° | ||||
| Tolerance of center to center distance of luminous point | ≤3% | ||||
| luminance uniformity | ≥95 | ||||
| Chromaticity uniformity | Within ±0.003Cx,Cy | ||||
| Contrast ratio | 8000:01:00 | ||||

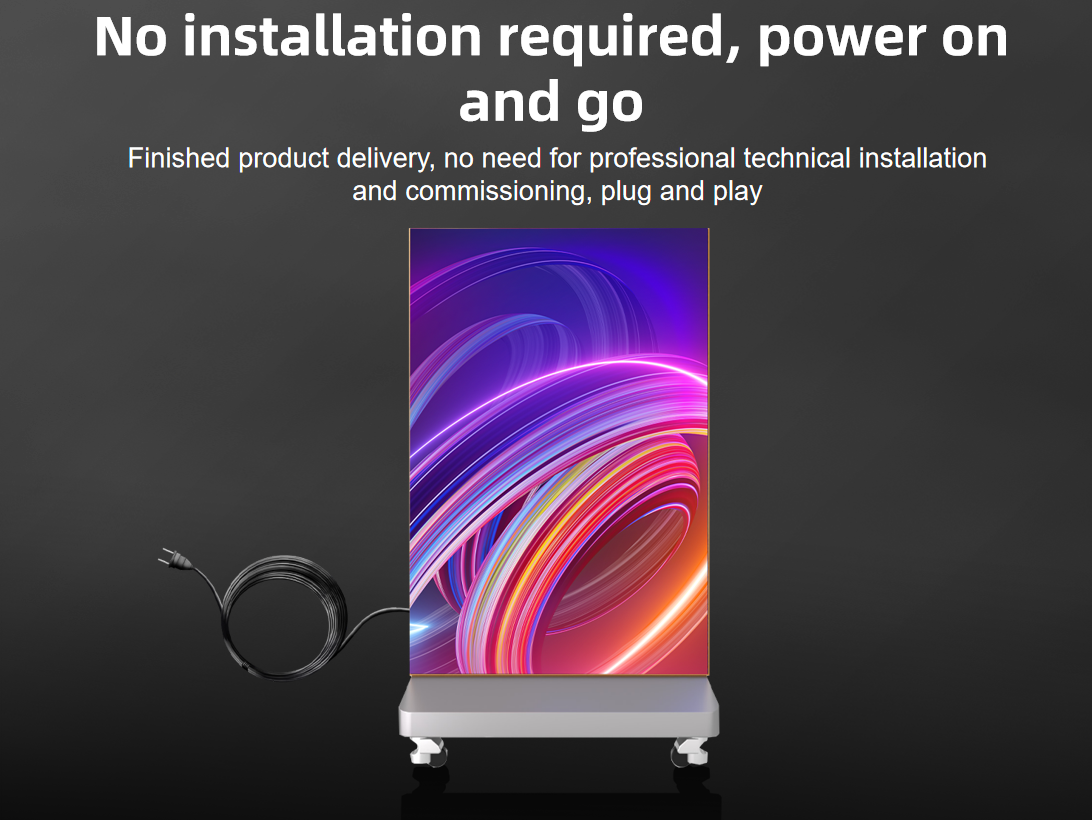

| Power on requirements | Power supply requirements | 110-240V | |||
| Peak power consumption | 430W | 450W | 550W | 650W | |
| Average Power | 145W | 150W | 185W | 220W | |
| Communication parameters | Synchronous/Asynchronous | be in favor of | |||
| Communication method | APP/U disk/Ethernet port/4G remote APP/USB drive/Ethernet port/4G remote | ||||

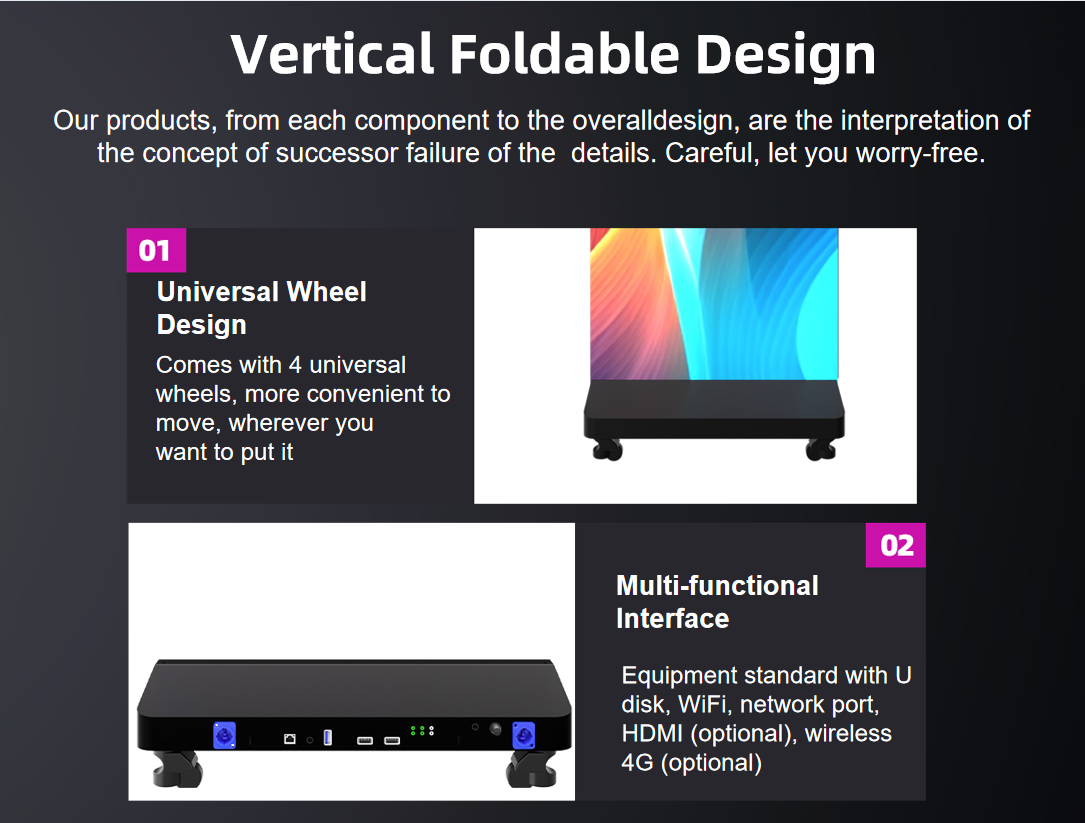

| Interface | JS485*1 WIFI*1 U disk*1 HDMI*2 | ||||
| Speaker | Is there a built-in speaker | 50*12mｍ*2PCS | |||
| audio | 3.5 Audio Interface/Supports External Amplifier | ||||
| Performance processing | Drive mode | Constant current drive | |||
| Frame Frequency | 60HZ | ||||
| Refresh rate | ≥3840HZ | ||||
| Using parameters | Typical lifespan values | 50000H | |||
| Working temperature range | ﹣40—50℃ | ||||
| Operating humidity range | 10-80% No condensation | ||||
| Storage Temperature Range | ﹣50—50RH | ||||
| Storage humidity range | 10-85%RH No condensation | ||||
